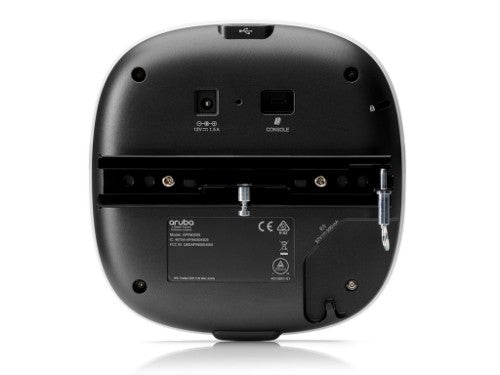

HPE Aruba Networking AP‑505 (JP) 1774 Mbit/s White Power over Ethernet (PoE)

HPE Aruba Networking AP‑505 (JP), 2.4 GHz, 5 GHz, 1774 Mbit/s, WPA3, WPA, WPA2, 10,100,1000 Mbit/s

Description

HPE Aruba Networking AP‑505 (JP). 2.4 GHz, 5 GHz, Maximum data transfer rate: 1774 Mbit/s. Security algorithms: WPA3, WPA, WPA2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 16.5 W

Specifications

Performance
Maximum data transfer rate	1774 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
MIMO type	Multi User MIMO
MIMO	Yes
Features
Maximum data transfer rate	1774 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Security
Security algorithms	WPA3, WPA, WPA2
Ports & interfaces
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	16.5 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	6.3" (160 mm)
Depth	6.34" (161 mm)
Height	1.46" (37 mm)
Weight	17.6 oz (500 g)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 93%
Logistics data
Harmonized System (HS) code	85176990
