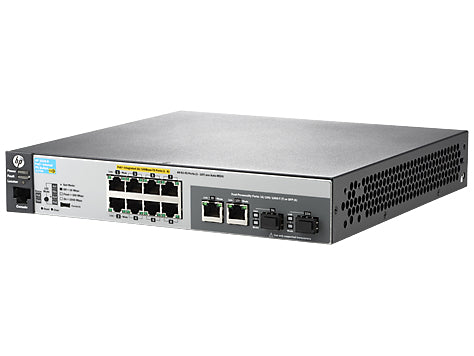

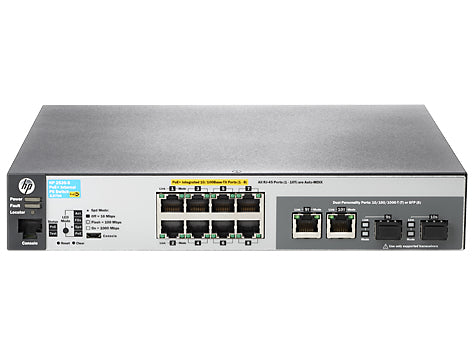

HPE Aruba Networking Aruba 2530 8 PoE+ Internal PS Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Gray

Aruba 2530 8 PoE+ Internal PS Switch

Description

The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, optional 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet.

The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management.

Features

Cost-Effective, Reliable and Secure Access Layer Switches
- The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
- Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, and IPv6 host support.
- Right size deployment with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks.
- Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.
- Delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.

Security and Quality of Service (QoS)
- The Aruba 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security.
- Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS.
- Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP).
- Defend your IPv6 network with DHCPv6 Protection.

Simple Deployment and Management
- The Aruba 2530 Switch Series supports a choice of management interfaces with Web GUI, command-line interface (CLI), and SNMP with either console or micro USB ports.
- Quiet operation with fanless and variable speed fan models.
- Flexible deployment with wall, table, and rack mounting options.
- TR-069 delivers zero touch deployment for devices with dynamic IP addresses and on private networks.

Single View of the Network
- The Aruba 2530 Switch Series supports ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Airwave Network Management software to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Full duplex	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
MAC address table	16000 entries
Switching capacity	5.6 Gbit/s
Throughput	4.1 Mpps
Latency (10-100 Mbps)	1.3 µs
Latency (1 Gbps)	1.3 µs
Jumbo frames support	Yes
Packet buffer memory	1.5 MB
Security
SSH/SSL support	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Gray
Form factor	1U
Performance
Virtual stacking (units)	16
Processor frequency	800 MHz
Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	128 MB
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	1.5 MB
Power
AC input voltage	100 - 240 V
Power consumption (typical)	70.2 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	67 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 90%
Heat dissipation	29 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	10" (254 mm)
Depth	9.68" (245.9 mm)
Height	1.75" (44.5 mm)
Weight	4.65 lbs (2.11 kg)
