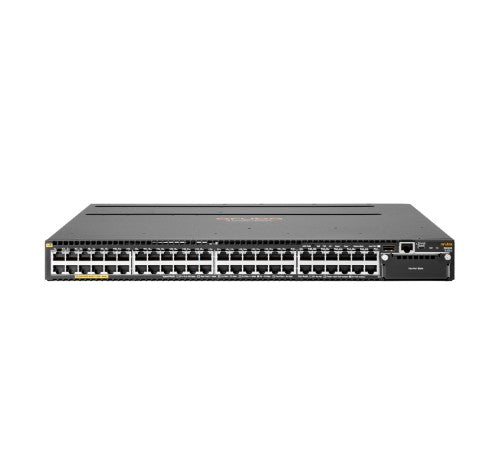

HPE Aruba Networking Aruba 3810M 48G PoE+ 1-slot Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

HPE Aruba Networking Aruba 3810M 48G PoE+ 1-slot, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking Aruba 3810M 48G PoE+ 1-slot. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. Full duplex. MAC address table: 64000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Full duplex	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
IP routing	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Data transmission
MAC address table	64000 entries
Switching capacity	320 Gbit/s
Throughput	190.5 Mpps
Latency (1 Gbps)	2.8 µs
Latency (10 Gbps)	1.8 µs
Jumbo frames support	Yes
Packet buffer memory	13.5 MB
Security
Access Control List (ACL)	Yes
DHCP features	DHCP server
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Form factor	1U
Performance
Virtual stacking (units)	10
Processor frequency	1000 MHz
Memory type	DDR3-SDRAM
Internal memory	2048 MB
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	13.5 MB
Harmonized System (HS) code	85176990
Power
Power supply included	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 90%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	17" (431.3 mm)
Height	1.73" (43.9 mm)
Weight	13.6 lbs (6.18 kg)
Logistics data
Harmonized System (HS) code	85176990
