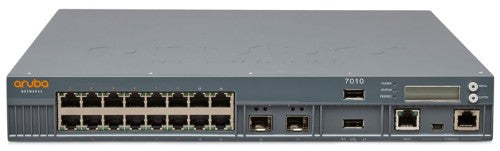

HPE Aruba Networking Aruba 7010 (JP) network management device 4000 Mbit/s Ethernet LAN Power over Ethernet (PoE)

HPE Aruba Networking Aruba 7010 (JP), 4000 Mbit/s, 2048 user(s), IEEE 802.3af, 10,100,1000 Mbit/s, 3DES, AES, Wired

Description

HPE Aruba Networking Aruba 7010 (JP). Firewall throughput: 4000 Mbit/s, Number of users: 2048 user(s). Networking standards: IEEE 802.3af, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 3DES, AES. Connectivity technology: Wired, Console port: RJ-45/micro-USB. Power consumption (typical): 190 W, Total Power over Ethernet (PoE) budget: 150 W

Specifications

Performance
Number of LAN Access Points (max)	32
Number of Remote Access Points (max)	32
MAC address table	0 entries
Number of users	2048 user(s)
Firewall throughput	4000 Mbit/s
Concurrent IPSec tunnels	1024
Number of VLANs	4094
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3af
Management features
VLAN support	Yes
Security
Security algorithms	3DES, AES
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	16
Installed SFP modules quantity	2
Console port	RJ-45/micro-USB
USB 2.0 ports quantity	2
Power
Total Power over Ethernet (PoE) budget	150 W
Power over Ethernet (PoE)	Yes
Power consumption (typical)	190 W
Design
Rack mounting	Yes
Product colour	Gray
Rack capacity	1U
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Dimensions (WxDxH)	1.25 x 1.33 x 0.173" (31.8 x 33.7 x 4.4 mm)
Weight	7.5 lbs (3.4 kg)
