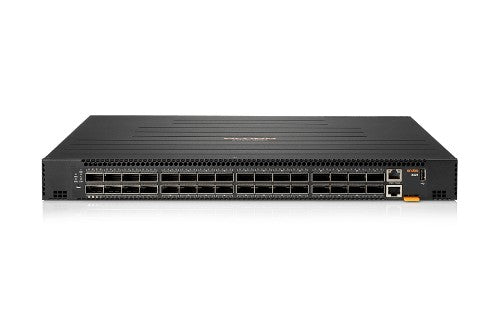

HPE Aruba Networking Aruba 8325-32C Managed L3 1U Black

HPE Aruba Networking Aruba 8325-32C, Managed, L3, Rack mounting, 1U

Description

HPE Aruba Networking Aruba 8325-32C. Switch type: Managed, Switch layer: L3. MAC address table: 98304 entries, Switching capacity: 6400 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
QSFP28 ports quantity	32
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
10G support	Yes
MLD entries	4094
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Data transmission
MAC address table	98304 entries
Supported data transfer rates	40/100 Gbps
Switching capacity	6400 Gbit/s
Throughput	1905 Mpps
Maximum data transfer rate	100 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	32 MB
Security
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP server
Multicast features
Multicast support	Yes
MLD entries	4094
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Form factor	1U

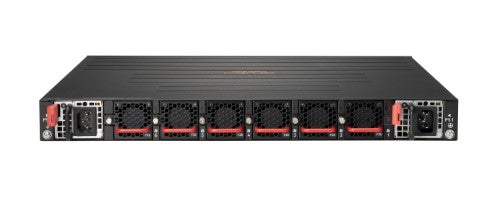

Number of fans	6 fan(s)
Performance
Processor frequency	2200 MHz
Internal memory	16384 MB
Flash memory	8192 MB
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	32 MB
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	550 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.3" (438.4 mm)
Depth	20.3" (515.1 mm)
Height	1.7" (43.2 mm)
Weight	20.9 lbs (9.5 kg)
Logistics data
Harmonized System (HS) code	85176990
