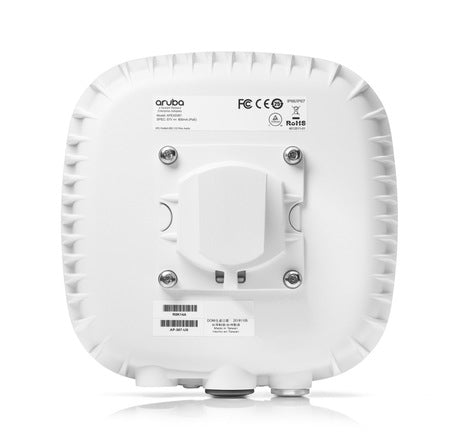

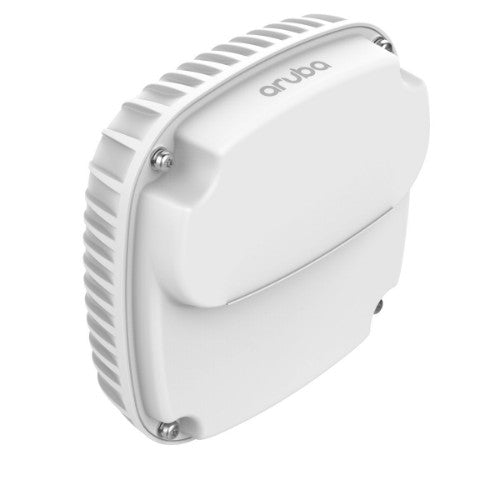

HPE Aruba Networking Aruba AP-387 (RW) 2500 Mbit/s White Power over Ethernet (PoE)

Aruba AP-387 (RW) 802.11ac/ad 802.3at PoE Dual 5/60GHz Integrated Antenna Outdoor Radio, Remanufactured

Description

The Aruba 387 access points are a cost-effective, simple to deploy and high performing point-to-point solution that is built upon Aruba’s hardened outdoor portfolio.

Weather-proof and temperature hardened, the Aruba AP-387 withstands the harshest outdoor environments.

With a maximum concurrent data rate of 2.5 Gbps in the 60GHz band and 867 Mbps in the 5GHz band, the AP-387 delivers an aggregate peak on air data rate of 3.37 Gbps.

The AP-387 is perfect for quickly and reliably connecting remote buildings, overcoming right of way issues or installing failover links in the event of line cuts or crushed conduit pipes. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.

Specifications

Performance
Maximum data transfer rate	2500 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	OFDM
2.4 GHz	No
5 GHz	Yes
Frequency band	5, 60 GHz
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
MIMO type	Multi User MIMO
MIMO	Yes
Features
Maximum data transfer rate	2500 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	OFDM
2.4 GHz	No
5 GHz	Yes
Frequency band	5, 60 GHz
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (5 GHz)	867 Mbit/s
Throughput data rate	3370 Mbit/s
Security
Security algorithms	Not supported
Ports & interfaces
USB connector type	Micro-USB
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	13.5 W
Power over Ethernet (PoE)	Yes
Design
Placement	Wall
Product colour	White
Antenna
Antenna type	Internal
Antenna gain level (max)	9 dBi
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	7.09" (180 mm)
Depth	7.09" (180 mm)
Height	3.98" (101 mm)
Weight	2.65 lbs (1.2 kg)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating altitude	0 - 118110.2" (0 - 3000 m)
Logistics data
Harmonized System (HS) code	85176990
