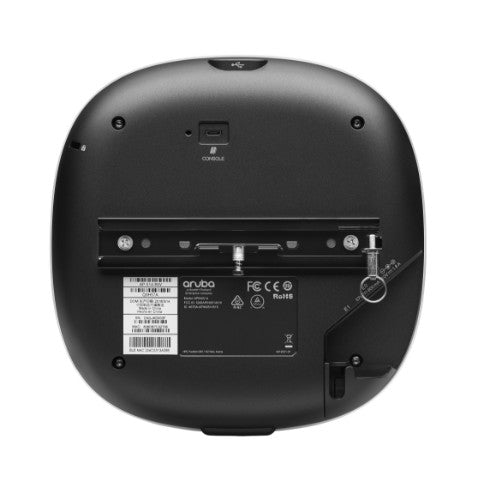

HPE Aruba Networking Aruba AP-514 (RW) 5375 Mbit/s White Power over Ethernet (PoE)

Aruba AP-514 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified Campus AP

Description

The Aruba 510 series access points with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software innovations, are designed to deliver high performance connectivity for mobile and IoT devices in any environment.

The 510 series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 4X versus 802.11ac APs.

In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity, WPA3 certified security, and unified wired and wireless policy with Dynamic Segmentation.

Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.

Specifications

Performance
Maximum data transfer rate	5375 Mbit/s
Ethernet LAN data rates	100,1000,2500 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
MIMO	Yes
Features
Maximum data transfer rate	5375 Mbit/s
Ethernet LAN data rates	100,1000,2500 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	575 Mbit/s
Maximum data transfer rate (5 GHz)	4800 Mbit/s
Security
Security algorithms	WMM, WPA, WPA2
Ports & interfaces
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
Power
Power consumption (typical)	16 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	External
Number of connectors	4
Antenna connector type	RP-SMA
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	7.87" (200 mm)
Depth	7.87" (200 mm)
Height	1.81" (46 mm)
Weight	28.6 oz (810 g)
Package width	9.06" (230 mm)
Package depth	8.66" (220 mm)
Package height	2.83" (72 mm)
Package weight	2.23 lbs (1.01 kg)
Packaging data
Package width	9.06" (230 mm)
Package depth	8.66" (220 mm)
Package height	2.83" (72 mm)
Package weight	2.23 lbs (1.01 kg)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 93%
Logistics data
Harmonized System (HS) code	85176990
