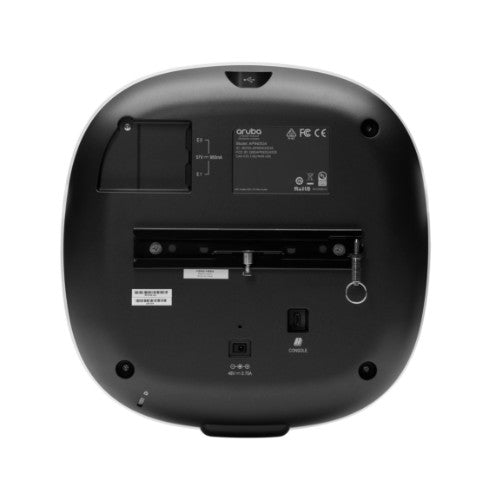

HPE Aruba Networking Aruba AP-534 (RW) 3550 Mbit/s White Power over Ethernet (PoE)

Aruba AP-534 (RW) Dual Radio 4x4:4 802.11ax External Antennas Unified Campus AP, Remanufactured

Description

The Aruba 530 Series with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software features are designed to deliver high performance connectivity in extreme density deployments of mobile and IoT devices.

The 530 Series is designed to simultaneously serve multiple clients and types of traffic, boosting overall network performance by up to 4X versus 802.11ac APs.

In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity and WPA3 certified security.

Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.

Enhanced performance
Aruba's ClientMatch feature intelligently groups Wi-Fi 6 clients onto the best AP's to leverage 802.11ax multi-user capabilities.

Smart power management
Aruba Intelligent Power Monitoring (IPM) allows APs to operate even if existing Ethernet switches lack adequate PoE power.

IoT and location ready
Leverage your Wi-Fi infrastructure to support Zigbee and Bluetooth use cases, devices and applications.

Specifications

Performance
Maximum data transfer rate	3550 Mbit/s
Ethernet LAN data rates	100,1000,2500,5000 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3z
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
MIMO	Yes
Features
Maximum data transfer rate	3550 Mbit/s
Ethernet LAN data rates	100,1000,2500,5000 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3z
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	1148 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Security
Security algorithms	WMM, WPA, WPA2
Ports & interfaces
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (max)	23.3 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	External
Number of connectors	4
Antennas quantity	4
Antenna connector type	RP-SMA
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	9.45" (240 mm)
Depth	9.45" (240 mm)
Height	2.24" (57 mm)
Weight	2.8 lbs (1.27 kg)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 93%
Logistics data
Harmonized System (HS) code	85176990
