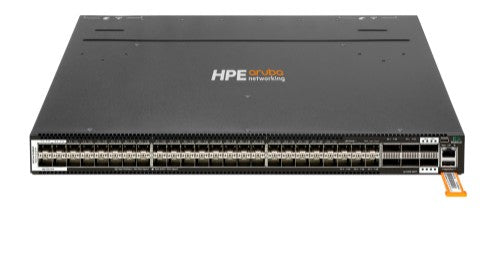

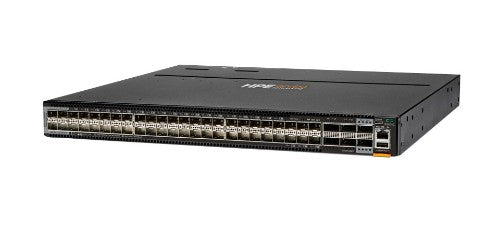

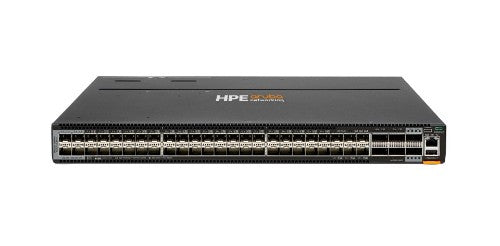

HPE Aruba Networking CX 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP+ 2Sec BF 5 Fans 2AC Bundle

HPE Aruba Networking CX 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP+ 2Sec BF 5 Fans 2AC Bundle, Managed, L3, Rack mounting, 1U

Reasons To Buy

Modular cloud-native architecture

HPE Aruba Networking CX 8360 v2 Switch Series features HPE Aruba Networking CX Switch Operating System (AOS-CX) which simplifies the complexities of managing data center networks with automation options to match your IT organization’s operating model.
It proactively detects issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch.
REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services.
Continual state synchronization provides superior fault tolerance and high availability with uninterrupted infrastructure, designed for resiliency and upgrades with zero downtime.
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6

HPE Aruba Networking CX Network Analytics Engine (NAE)

HPE Aruba Networking CX 8360 v2 Switch Series utilizes the HPE Aruba Networking CX Network Analytics Engine (NAE) for advanced telemetry and automation to provide industry-first monitoring and troubleshooting systems that greatly improves network operations.
The time series database (TSDB) is used to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.

High availability and resiliency

Software processes in the HPE Aruba Networking CX 8360 v2 Switch Series run as microservices that communicate through the state database of the switch.
HPE Aruba Networking Virtual Switching Extension (VSX) provides a robust solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an inter-switch link.

Software-defined automation

The HPE Aruba Networking CX 8360 v2 Switch Series is supported by HPE Aruba Networking Fabric Composer, a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
It orchestrates a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.

Description

HPE Aruba Networking CX 8360-48Y6C v2 48p 25G SFP28 4Sec 6p 100G QSFP+ 2Sec BF 5 Fans 2AC Bundle. Switch type: Managed, Switch layer: L3. Console port: RJ-45/USB Type-C. MAC address table: 212992 entries, Switching capacity: 4800 Gbit/s. Networking standards: IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	48
QSFP+ module slots quantity	6
Console port	RJ-45/USB Type-C
Fiber optic connector	SFP+
Network
Networking standards	IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4094
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
Virtual LAN features	Private VLAN
IGMP snooping	Yes
IGMP entries	7000
Data transmission
MAC address table	212992 entries
Switching capacity	4800 Gbit/s
Throughput	1309 Mpps
Jumbo frames support	Yes
Packet buffer memory	32 MB
Static route	Yes
Number of VLANs	4094
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
IGMP entries	7000
DHCP features	DHCP relay, DHCP server
Multicast features
Multicast support	Yes
Protocols
Routing protocols	BGP4, MPLS, OSPF, RIP, RIPng, RIP-2
Design
Rack mounting	Yes
Form factor	1U
Airflow direction	Back-to-front airflow
Number of fans	5 fan(s)
Redundant fans support	Yes
Performance
Processor frequency	1800 MHz
Memory type	RAM / Flash
Internal memory	16384 MB
Flash memory	32000 MB
Built-in processor	Yes
Packet buffer memory	32 MB
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	200 - 240 V
AC input frequency	47/63 Hz
Power consumption (max)	725 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power consumption note	Maximum: 725W Idle: 230W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Performance management	RJ45 serial and USB-C console RJ45 Ethernet port USB-Type A
Memory and processor	CPU: 1.8 GHz 4-core 64-bit RAM: 16 GB Flash/Storage: 32 GB Packet Buffer: 32 MB
Fan	5 field-replaceable and hot-swappable fans
Weight (imperial)	23.65 lbs
I/O ports	44-port of 1/10/25GbE (SFP/SFP+/SFP28) 4-port of 10/25GbE (SFP+/SFP28) with MACsec 4-port of 40/100GbE (QSFP+/QSFP28) 2-port of 40/100GbE (QSFP+/QSFP28) with MACsec
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Heat dissipation	1.45 BTU/h
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Virtual LAN features	Private VLAN
Weight & dimensions
Width	1.73" (44 mm)
Depth	1.74" (44.2 mm)
Height	22" (559 mm)
Weight	23.6 lbs (10.7 kg)
Optical fiber
Fiber optic connector	SFP+
Logistics data
Harmonized System (HS) code	85176990
