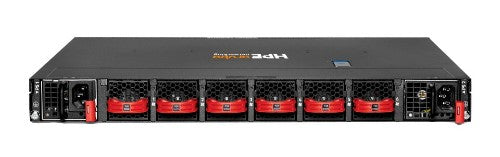

HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle

HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle, Managed, L3, Rack mounting, 1U

Reasons To Buy

High performance and scale

The HPE Aruba Networking CX 9300 Switch Series meets the modern demands of large-scale virtualized and cloud networks. Provides flexible, cost-effective, high-density 100/400GbE for servers, storage, and intra-fabric connectivity.
The HPE Aruba Networking CX 9300 Switch Series with breakout cabling scalability allows a single 200GbE split into two 100GbE links, 100GbE ports can breakout to four 25GbE ports linking one switch port and accommodating up to four adapter cards in servers or other subsystems.
The HPE Aruba Networking CX 9300 Switch Series eases transition from 10GbE and 25GbE to 100GbE/400GbE providing higher scaling with reduced power and a smaller footprint. 400 Gbps port can be configured as 4 x 100GbE, 2 x 200GbE, or 1 x 400GbE.

Ethernet storage fabric optimized

The HPE Aruba Networking CX 9300 Switch Series enables low-latency and “lossless” network quality of service (QoS) and connectivity characteristics that storage requires.
Ideal for software-defined storage and HCI solutions, where multiple servers share captive (SSD/flash-based) storage resources.
Ideal solution for data center, cloud, and storage use cases that support top-of‑rack server and storage connectivity and scale-out leaf‑spine fabrics.

Intelligent analytics

HPE Aruba Networking Network Analytics Engine (NAE) provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple Python agents and REST APIs.
Intelligent pre-processing of data turns raw telemetry into actionable insights.
HPE Aruba Networking Switch Multi-Edit Software support automated configuration and verification.

High performance and high availability

The HPE Aruba Networking Virtual Switching Extension (VSX) is a high availability technology designed from the ground up to deliver continuous availability, virtualization, and simplicity requirements. Redundant and hot-swappable power supplies and fans provide additional resiliency.
HPE Aruba Networking CX 9300 Switch Series delivers advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6. The switch series supports dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks.

Description

HPE Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle. Switch type: Managed, Switch layer: L3. Console port: RJ-45/Micro-USB. MAC address table: 81920 entries, Switching capacity: 25600 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	2
Console port	RJ-45/Micro-USB
Fiber ports quantity	32
Fiber optic connector	QSFP-DD
Network
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ak, IEEE 802.3ba, IEEE 802.3bs, IEEE 802.3by, IEEE 802.3cd
Number of VLANs	4040
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
Virtual LAN features	Private VLAN
IGMP snooping	Yes
MLD entries	4000
IPv6 multicast entries	8000
IPv4 multicast entries	8000
Data transmission
MAC address table	81920 entries
Switching capacity	25600 Gbit/s
Throughput	5000 Mpps
Jumbo frames support	Yes
Packet buffer memory	132 MB
Static route	Yes
Number of VLANs	4040
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server
Multicast features
Multicast support	Yes
MLD entries	4000
IPv6 multicast entries	8000
IPv4 multicast entries	8000
Protocols
Management protocols	SNMPv2c, SNMPv3
Routing protocols	BGP4, OSPF, RIP, RIPng, RIP-2
Design
Rack mounting	Yes
Form factor	1U
Airflow direction	Back-to-front airflow
Number of fans	6 fan(s)
Redundant fans support	Yes
Performance
Processor frequency	1700 MHz
Internal memory	32000 MB
Built-in processor	Yes
Packet buffer memory	132 MB
Power
Power supply included	Yes
AC input voltage	220 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	615 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power consumption note	100% Traffic Rate: 688W Idle: 221W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Performance management	SNMP REST RJ-45 serial Micro USB console port RJ-45 OOBM Port
Memory and processor	128 GB m.2 SSD, 4 GB mSATA, 128 MB SPI Flash, 16 GB x2 SODIMM
Fan	6 redundant fans, field-replaceable, hot-swappable
Weight (imperial)	26.12 lbs
I/O ports	32 ports of 100GbE, 200GbE, or 400GbE 400 Gbps ports can be configured as 4 x 100GbE, 2 x 200GbE, or 1 x 400GbE
Dimensions (W x D x H) (imperial)	1.71 x 17.26 x 23.23"
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 181102.4" (0 - 4600 m)
Heat dissipation	4.435 BTU/h
Virtual LAN features
Number of VLANs	4040
VLAN support	Yes
Virtual LAN features	Private VLAN
Weight & dimensions
Width	1.71" (43.5 mm)
Depth	17.3" (438.4 mm)
Height	23.2" (590 mm)
Weight	26 lbs (11.8 kg)
Optical fiber
Fiber optic connector	QSFP-DD
Technical details
Compliance certificates	Trade Agreements Act (TAA)
Certificates
Compliance certificates	Trade Agreements Act (TAA)
