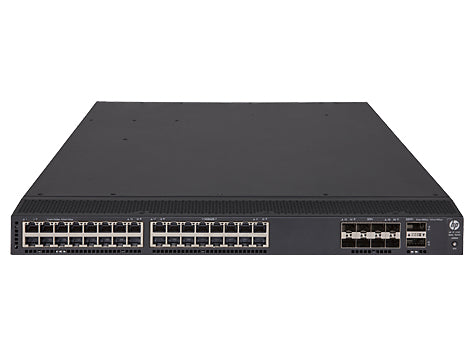

HPE Aruba Networking FlexFabric 5700-32XGT-8XG-2QSFP+ Managed L3 10G Ethernet (100/1000/10000) 1U Black

HPE Aruba Networking FlexFabric 5700-32XGT-8XG-2QSFP+, Managed, L3, 10G Ethernet (100/1000/10000), Full duplex, Rack mounting, 1U

Description

HPE Aruba Networking FlexFabric 5700-32XGT-8XG-2QSFP+. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 32, Installed SFP+ modules quantity: 8, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 128000 entries, Switching capacity: 960 Gbit/s. Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
MIB support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	32
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity	8
QSFP+ module slots quantity	8
Console port	RJ-45
USB 2.0 ports quantity	1
Fiber optic connector	QSFP+, SFP+
Network
Full duplex	Yes
Number of VLANs	4096
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
MAC address table	128000 entries
Switching capacity	960 Gbit/s
Throughput	714.2 Mpps
Latency (10 Gbps)	1.5 µs
Jumbo frames support	Yes
Packet buffer memory	9 MB
Number of VLANs	4096
Security
Security algorithms	802.1x RADIUS
IGMP snooping	Yes
Protocols
Management protocols	SNMP, Telnet, FTP, NTP, SNTP
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Form factor	1U
LED indicators	Yes
Performance
Virtual stacking (units)	9
Noise level	70.6 dB
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Stackable	Yes
Packet buffer memory	9 MB
Harmonized System (HS) code	85176990
Power
Power supply included	No
AC input voltage	100 - 240 V
Power consumption (typical)	350 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Management platform	IMC - Intelligent Management Center; command-line interface; out-of-band management; SNMP Manager; Telnet; FTP
Latency	10 Gbps Latency: < 1.5 µs
Memory and processor	512 MB flash; packet buffer size: 9 MB; 2 GB SDRAM
I/O ports	32 RJ-45 1/10GBASE-T ports; 8 fixed 1000/10000 SFP+ ports; 2 QSFP+; Included
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
Number of VLANs	4096
VLAN support	Yes
Weight & dimensions
Width	17.3" (439.9 mm)
Depth	26" (660 mm)
Height	1.72" (43.7 mm)
Weight	28.7 lbs (13 kg)
Optical fiber
Fiber optic connector	QSFP+, SFP+
Logistics data
Harmonized System (HS) code	85176990
