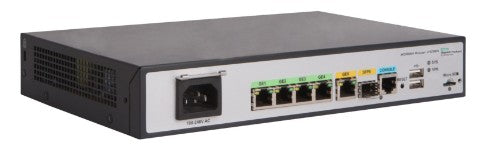

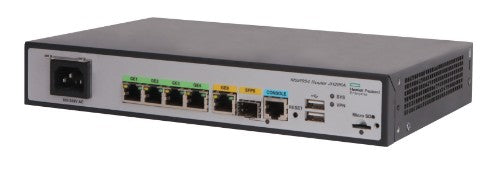

HPE MSR954 1GbE SFP 2GbE-WAN 4GbE-LAN CWv7 Router

HPE MSR954 1GbE SFP 2GbE-WAN 4GbE-LAN CWv7 Router, Ethernet WAN, Gigabit Ethernet, Gray

Reasons To Buy

Reduces Complexity and Simplifies Your Network

The HPE Networking Comware Router Series MSR95x provides a Converged Infrastructure (CI) with integrated routing, switching, security, voice, and cellular WAN delivering high-performance small branch routing.
Makes administration easier when using the HPE Networking Intelligent Management Center (IMC) Software.
Reduces management complexity with zero-touch deployment (ZTD) and Auto Discovery VPN (ADVPN).
Delivers increased flexibility in Comware v7 OS environments across multiple routers.

Enhances Time to Service and Branch Performance

The HPE Networking Comware Router Series MSR95x offers high-performance routing with up to 3 Mpps forwarding.
Simplifies your network with OpenFlow and Zero Touch Provisioning.
Deploys rich features with Comware v7 security, including IPS with high encryption, and dual gigabit WAN ports that support fiber and copper connections.
Supports branch services with a comprehensive feature set, including IPv4 and IPv6 routing, MPLS, QoS, NAT, and VPN services.

Increases Your Return on Your Investment

The HPE Networking Comware Router Series MSR95x offers an extensive range of models and accessories to enable the right design for your business, in a compact fixed-port platform.
Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
Deploy advanced features with no additional licensing.

Boost Agility and Resiliency.

The HHPE Networking Comware Router Series MSR95x delivers branch service and business continuity with multiple network options including dual gigabit WAN, dual 3G/4G LTE WAN, and built-in WLAN.
With advanced hardware architecture, the HPE Networking Comware Router Series MSR95x provides reliable, high-performance functionality.
Gives you an open standards approach to your network infrastructure.

Description

HPE MSR954 1GbE SFP 2GbE-WAN 4GbE-LAN CWv7 Router. Networking standards: IEEE 802.3, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). MAC address table: 10000 entries. Product color: Gray. Power consumption (typical): 22 W, Power consumption (max): 22 W, AC input voltage: 100 - 264 V. Width: 10.5" (266 mm), Depth: 6.34" (161 mm), Height: 1.72" (43.6 mm)

Specifications

Ethernet LAN features
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Network
MAC address table	10000 entries
Ethernet LAN	Yes
Networking standards	IEEE 802.3
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Forwarding rate	0.03 Mpps
Ethernet interface type	Gigabit Ethernet
WAN connection
Ethernet WAN	Yes
Management features
Web-based management	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB ports quantity	1
USB version	2.0
I/O ports	(1) fixed Gigabit Ethernet SFP port (1) RJ-45 autosensing 10/100/1000 WAN port (4) RJ-45 autosensing 10/100/1000 LAN ports
WAN ports quantity	1
Protocols
DHCP server	Yes
DHCP client	Yes
Security
MAC address table	10000 entries
Security algorithms	Not supported
Firewall	No
Technical details
Harmonized System (HS) code	85176990
Warranty period	1 year(s)
Design
Product colour	Gray
Power
AC input voltage	100 - 264 V
Power consumption (typical)	22 W
Power consumption (max)	22 W
Operational conditions
Operating relative humidity (H-H)	5 - 92%
Non-operating relative humidity (non-condensing)	5 - 92%
Weight & dimensions
Width	10.5" (266 mm)
Depth	6.34" (161 mm)
Height	1.72" (43.6 mm)
Weight	2.2 lbs (1 kg)
Dimensions (W x D x H) (imperial)	10.47 x 6.34 x 1.72"
Logistics data
Harmonized System (HS) code	85176990
Other features
Wireless features	3G, 4G LTE, or 802.11b/g/n Available on selected models
Weight (imperial)	2.2 lbs
Dimensions (W x D x H) (imperial)	10.47 x 6.34 x 1.72"
