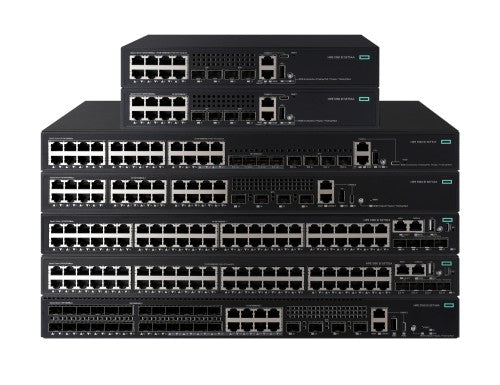

HPE Networking Comware Switch 24p 10M/100M/1G PoE+ 4p SFP 1G Combo 4p SFP+ 1G/10G 5150EI

HPE Networking Comware Switch 24p 10M/100M/1G PoE+ 4p SFP 1G Combo 4p SFP+ 1G/10G 5150EI, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

Reasons To Buy

Scalable, Reliable L3 Access Switches

The HPE Networking Comware Switch Series 5150 EI delivers scalability and enhances reliability of the network with Intelligent Resilient Framework (IRF) technology. IRF stacking enables virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router.
IRF stacking enhances performance and reliability with uninterrupted L2 switching and L3 forwarding and reduces operational complexity with simpler, flatter, and more agile networks.
Four fixed 10 GbE uplinks (SFP, SFP+, and 10 GBASE-T) deliver performance for bandwidth intensive applications.
Link redundancy with support for Spanning Tree (MSTP, RSTP) and Smart Link protocols for highly available links.

Performance with Quality of Service (QoS)

The HPE Networking Comware Switch Series 5150 EI is engineered with non-blocking architecture for low-latency switching. It supports advanced classifier-based Quality of Service (QoS) to group traffic, set priority levels, and rate limit selected traffic on a port, VLAN, or entire switch.
It provides traffic prioritization with supported congestion actions including: strict priority (SP) queuing, weighted round robin (WRR), weighted random early detection (WRED), and SP+WRR queuing and traffic policing with Committed Access Rate (CAR) and line rate.
Reduce unwanted network traffic with broadcast control and limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic.

Security with Comprehensive Control

The HPE Networking Comware Switch Series 5150 EI supports flexible authentication methods including 802.1X and MAC authentication for greater security and policy-driven application authentication. Per-user access control lists (ACLs) provide identity-driven security and access control.
Centralized security policy management and network protection with IMC End User Admission Domination (EAD) which integrates security policies, network access control, and access right control policies to form a cooperative security system.
ACLs provide IP Layer 2 to Layer 4 traffic filtering while supporting global ACL, VLAN ACL, port ACL, and IPv6 ACL.
Dynamic ARP protection with functions such as ARP Detection and ARP packet validation that block broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data.
Enhance security with encryption of access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3, and other features including DHCP protection, IP source guard, and RADIUS/HWTACACS.

Simplified Management and Operations

The HPE Networking Comware Switch Series 5150 EI supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or entire switch.
It supports SmartMC, an embedded network management tool with a web-based GUI to simplify operations and facilitate centralized management. It offers features such as configuration backup, software version management and seamless switch replacement.
RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.

Description

HPE Networking Comware Switch 24p 10M/100M/1G PoE+ 4p SFP 1G Combo 4p SFP+ 1G/10G 5150EI. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Switching capacity: 128 Gbit/s. Power over Ethernet (PoE). Rack mounting

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Network
10G support	Yes
Data transmission
Switching capacity	128 Gbit/s
Throughput	95 Mpps
Latency (1 Gbps)	5 µs
Latency (10 Gbps)	3 µs
Packet buffer memory	1.5 MB
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Performance
Physical stacking (units)	9
Processor frequency	1200 MHz
Memory type	SDRAM / Flash
Internal memory	2048 MB
Flash memory	1024 MB
Processor manufacturer	ARM
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	1.5 MB
Power
AC input voltage	90 - 290 V
Power consumption note	Idle: Single AC: 23W Full Load: Single AC: 465W (PoE 405W)
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	405 W
Other features
Latency	1GE: < 5 μs; 10GE: < 3 μs
Performance management	IMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC GUI
Memory and processor	CPU: Arm 1.2 GHz Dual Core 2 GB SDRAM, 1 GB Flash, 1.5 MB packet buffer
Port speed rating	24p 10M/100M/1G PoE+ 4p SFP 1G Combo 4p SFP+ 1G/10G
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
