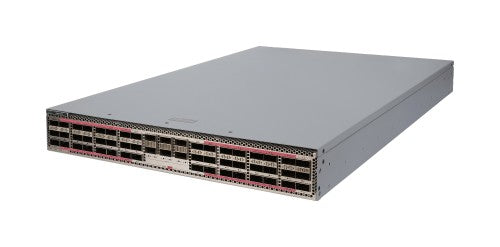

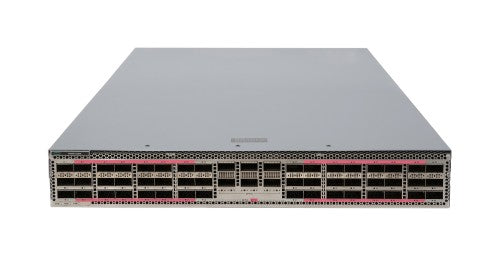

HPE Networking Comware Switch 48p SFP28 25G 8p QSFP-DD 400G 5960

HPE Networking Comware Switch 48p SFP28 25G 8p QSFP-DD 400G 5960, 4400 Gbit/s, DDR4-SDRAM, 100 - 240 V, 719W, <1.2μs, D-1627 4 core@2.9GHz 16G DDR4, 240G SSD

Reasons To Buy

Consistent and Advanced Data Center Switches with Flexible Connectivity Options

The HPE Networking Comware Switch Series 5960 delivers high-density 25G/40G/100G/200G/400G switching for enterprise, cloud, and service provider data centers—helping teams scale bandwidth, simplify deployments, and support demanding workloads with flexible, performance-driven configurations.
Built on Comware v9, the switch series delivers advanced capabilities for highly distributed environments, including SR-MPLS, modular open architecture, containerized deployment, and support for third-party software applications.
It has VXLAN/EVPN for network virtualization and overlay solutions for improved flexibility.
The switch series supports DRNI that combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, fast forwarding, resiliency, and high availability.
The 5960R model supports PTP, SR, VXLAN, EVPN. DRNI, HPE IMC Orchestrator

High-Performance Data Center Switching

The HPE Networking Comware Switch Series 5960 supports redundant, hot-swappable power modules and varied fan speeds to meet the actual demands, thereby enabling a dynamic and highly available network.
Delivers up to 12.8 Tbps switching capacity for demanding data center applications.
Low latency, under 1 μs delivering increased network throughput.
Uses programmable chips that improve flexibility and aid in network expansion by defining forwarding logic and developing new features as per user needs through simple software upgrades.

Rich Quality of Service (QoS) features

The HPE Networking Comware Switch Series 5960 support Layer 2 to Layer 4 packet filtering for traffic classification based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN.
The switch series Supports committed access rate (CAR) and line rate for anomaly detection and troubleshooting.
It provides extensive traffic prioritization with strict priority (SP) queuing, weighted round robin (WRR), SP+WRR, WFQ, and SP+WFQ.

Improved Visibility and Simplified Management

The HPE Networking Comware Switch Series 5960 supports operations, administration, and maintenance (OAM) for improved manageability.
The switch series increase network visibility by sending real-time information, statistics, and RDMA notifications to the data center operation and maintenance platform through ERSPAN and gRPC protocols.
It support real-time analysis, troubleshooting, and risk warning to improve network performance and provide business continuity.
The switch series uses multiple access methods including SNMPv1/v2c/v3, Telnet, SSH 2.0, SSL, and FTP to monitor essential network functions; and supports events, alarm, history, and statistics group plus a private alarm extension group.
It supports centralized configuration, compliance and policy management, monitoring, and troubleshooting with HPE IMC to provide a consistent network manageability experience; for data center fabric orchestration and application telemetry, this switch supports HPE IMC Orchestrator and Analyzer.

Description

HPE Networking Comware Switch 48p SFP28 25G 8p QSFP-DD 400G 5960. Switching capacity: 4400 Gbit/s

Specifications

Data transmission
Switching capacity	4400 Gbit/s
Performance
Memory type	DDR4-SDRAM
Built-in processor	Yes
Power
AC input voltage	100 - 240 V
Power consumption note	719W
Power supply note	2x R9Y18A/R9Y19A
Other features
Latency	<1.2μs
Performance management	HPE IMC; CLI; out-of-band management; SNMP Manager; Telnet; and FTP. Notes: The customer must install a minimum of one power supply, as the device does not come with one. The customer must install six fan kits, as the device does not come with one.
Memory and processor	D-1627 4 core@2.9GHz 16G DDR4, 240G SSD
I/O ports	48x 25G SFP28 ports 8x 400G QSFP-DD ports
Operational conditions
Operating temperature (T-T)	0 - 40 °C
