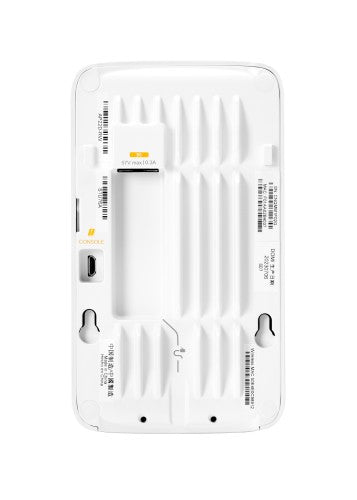

HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 5-Pack (RW) AP22D

HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 5-Pack (RW) AP22D, 2.4 GHz, 5 GHz, 1200 Mbit/s, OWE, WPA2, WPA3, 1000,2500 Mbit/s

Reasons To Buy

802.11ax Wi-Fi CERTIFIED 6

HPE Networking Instant On Access Points AP22D features Orthogonal Frequency-Division Multiple Access (OFDMA) which allows access points to handle multiple Wi-Fi 6 capable clients on each channel simultaneously and improve efficiency by boosting overall capacity, reducing latency.
Target Wake Time (TWT): Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This reduces power consumption and can extend the battery life of clients.
Multi-User, Multiple Input, Multiple Output (MU-MIMO), allows the access point to simultaneously serve multiple clients (Wi-Fi 5 and Wi-Fi 6).

2.5 Gigabit Ethernet Uplink Port

HPE Networking Instant On Access Points AP22D offers increased available bandwidth to allow for more traffic over Wi-Fi 6 or with the downlink ethernet ports.
Use existing cabling infrastructure like Cat5 or Cat6(a) cables and avoid the additional cost of running new cables across your facility.
Future-proof your environment with the added bandwidth capacity to handle the ever-growing world of cloud-based applications.

Four Downlink 1 Gigabit Ethernet Ports

Connect up to four copper RJ-45 devices to the HPE Networking Instant On Access Points AP22D without the need for an additional switch to manage.
Downlink ports can power two 15W PoE (802.3af) devices without the intervention of a bulky PoE-Injector.

Description

HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 5-Pack (RW) AP22D. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1200 Mbit/s. Security algorithms: OWE, WPA2, WPA3. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 51 W

Specifications

Performance
Maximum data transfer rate	1200 Mbit/s
Ethernet LAN data rates	1000,2500 Mbit/s
Spread spectrum method	OFDMA
2.4 GHz	Yes
5 GHz	Yes
Number of users	75 user(s)
Web-based management	Yes
Reset button	Yes
Networking standards	IEEE 802.11ax
Certification	Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
MIMO type	Multi User MIMO
MIMO	Yes
Features
6 GHz	No
Maximum data transfer rate	1200 Mbit/s
Ethernet LAN data rates	1000,2500 Mbit/s
Spread spectrum method	OFDMA
2.4 GHz	Yes
5 GHz	Yes
Number of users	75 user(s)
Networking standards	IEEE 802.11ax
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Trusted Platform Module (TPM)	Yes
Security
Security algorithms	OWE, WPA2, WPA3
Management features
Web-based management	Yes
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	5
DC-in jack	Yes
Power
Power consumption (typical)	50 W
Power consumption (max)	51 W
Power over Ethernet (PoE)	Yes
DC voltage range	48 V
Design
Reset button	Yes
Placement	Desk, Wall
Product colour	White
Cable lock slot	Yes
Certification	Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	5.4 dBi
Antenna direction type	Semi-directional
Antenna features	Integrated antenna
Certificates
Certification	Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Weight & dimensions
Width	3.39" (86 mm)
Depth	1.85" (47 mm)
Height	5.91" (150 mm)
Weight	12.7 oz (360 g)
Other features
Mounting	Gang wall box-mount kit or Desk-mount kit
I/O ports	1x 2.5 GbE Base-T PoE Class 4/6 uplink 2x 1 GbE Base-T PoE Class 3 downlink 2x 1 GbE Base-T downlink DC power connector LED status indicators Reset/LED control button Kensington security slot
Operational conditions
Operating temperature (T-T)	0 - 40 °C
