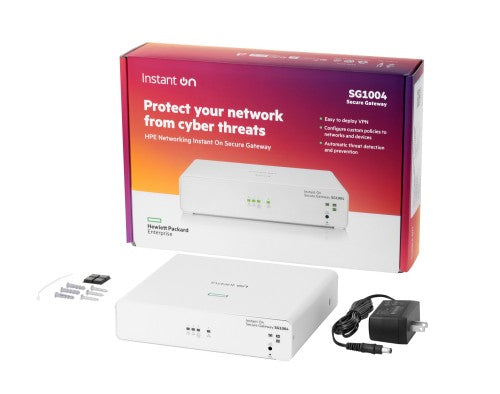

HPE Networking Instant On Secure Gateway 4-port Gigabit SG1004

HPE Networking Instant On Secure Gateway 4-port Gigabit SG1004, White, Desktop/Wall mounting, 2000 MHz, 2048 MB, 4096 MB, 10,100,1000 Mbit/s

Reasons To Buy

Active Threat Monitoring with Intrusion Detection and Prevention (IDS/IPS)

IDS and IPS monitor network traffic for suspicious activities. IDS detects and alerts administrators about potential security breaches, while IPS actively blocks or prevents threats in real-time.
Together, IDS and IPS enhance network security by identifying and responding to potential intrusions.

Keep the Network Safe with a Stateful Firewall

This monitors and controls network traffic based on policies, creating a barrier between trusted internal networks and untrusted external networks to prevent unauthorized access and cyber threats.
Default settings block external traffic from accessing the LAN. policies can allow or block traffic, enable port-forwarding, and client access.

Keep the Business Online with WAN Resiliency

This feature enables continuous connectivity during network disruptions using multiple ISP connections.
The secure gateway detects issues (link degradation or failure) and reroutes traffic to the best available ISP uplink, reducing downtime and service interruptions.

Multi-Gigabit and PoE Ports (SG2505P)

Great for small and medium businesses with ISP throughputs faster than a gigabit, utilizes the 2.5 G ports on the SG2505P for maximum throughput.
A PoE budget of 60W makes the SG2505P a smart choice for deploying a compact and easy-to-manage network by powering Instant On access points without an additional switch.

Description

HPE Networking Instant On Secure Gateway 4-port Gigabit SG1004. Product color: White, Mounting type: Desktop/Wall mounting. Processor frequency: 2000 MHz, Internal memory: 2048 MB, Flash memory: 4096 MB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Firewall throughput: 980 Mbit/s. WAN connection: Ethernet (RJ-45). Power consumption (max): 12 W, Power consumption (idle): 2.3 W, Input voltage: 100 - 240 V

Specifications

Design
Certification	Europe: EN 62368-1:2014 +A11:2017 EN 62368-1:2020 +A11:2020 US: UL 62368-1, 3rd Ed., Canada: CAN/CSA C22.2 No. 62368-1:19, 3rd Ed. Worldwide: IEC 62368-1:2014, 2nd Ed. IEC 62368-1: 2018, 3rd Ed. Taiwan: CNS-15598-1:2020 China: GB 4943.1:2022 Europe: EN 55032:2015 + A11:2020, Class B EN 61000-3-2:2019 EN 61000-3-3:2013 US: FCC 47 CFR part 15B: 2021, Class B Canada: ICES-003 Issue 7: 2020, Class B Worldwide: VCCI-CISPR 32, Class B CISPR 32: 2016, Class B AS/NZS CISPR 32: 2015, Class B CNS 15936: 2020, Class B CISPER 35: 2016 EN 55035:2017/A11:2020 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 IEC/EN 61000-3-2 IEC/EN 61000-3-3 IEC/EN 63000:2018 KS C 9832
Mounting type	Desktop/Wall mounting
Product colour	White
Performance
Built-in processor	Yes
Processor frequency	2000 MHz
Internal memory	2048 MB
Flash memory	4096 MB
Certification	Europe: EN 62368-1:2014 +A11:2017 EN 62368-1:2020 +A11:2020 US: UL 62368-1, 3rd Ed., Canada: CAN/CSA C22.2 No. 62368-1:19, 3rd Ed. Worldwide: IEC 62368-1:2014, 2nd Ed. IEC 62368-1: 2018, 3rd Ed. Taiwan: CNS-15598-1:2020 China: GB 4943.1:2022 Europe: EN 55032:2015 + A11:2020, Class B EN 61000-3-2:2019 EN 61000-3-3:2013 US: FCC 47 CFR part 15B: 2021, Class B Canada: ICES-003 Issue 7: 2020, Class B Worldwide: VCCI-CISPR 32, Class B CISPR 32: 2016, Class B AS/NZS CISPR 32: 2015, Class B CNS 15936: 2020, Class B CISPER 35: 2016 EN 55035:2017/A11:2020 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 IEC/EN 61000-3-2 IEC/EN 61000-3-3 IEC/EN 63000:2018 KS C 9832
Mounting type	Desktop/Wall mounting
Product colour	White
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Firewall throughput	980 Mbit/s
Ports & interfaces
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	4
I/O ports	Total ports: 4 WAN Interface: 1x 10/100/1000-Base-T Ethernet WAN/LAN Configurable Interface: 1x 10/100/1000-Base-T Ethernet LAN Interfaces: 2x 10/100/1000-Base-T Ethernet
Power
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	12 W
Power consumption (idle)	2.3 W
Weight & dimensions
Weight	2.2 lbs (1 kg)
Width	1.69" (43 mm)
Height	7.52" (191 mm)
Depth	6.5" (165 mm)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 95%
Technical details
Built-in processor	Yes
Processor frequency	2000 MHz
Weight (imperial)	2.3 lbs
Memory
Internal memory	2048 MB
Flash memory	4096 MB
Certificates
Certification	Europe: EN 62368-1:2014 +A11:2017 EN 62368-1:2020 +A11:2020 US: UL 62368-1, 3rd Ed., Canada: CAN/CSA C22.2 No. 62368-1:19, 3rd Ed. Worldwide: IEC 62368-1:2014, 2nd Ed. IEC 62368-1: 2018, 3rd Ed. Taiwan: CNS-15598-1:2020 China: GB 4943.1:2022 Europe: EN 55032:2015 + A11:2020, Class B EN 61000-3-2:2019 EN 61000-3-3:2013 US: FCC 47 CFR part 15B: 2021, Class B Canada: ICES-003 Issue 7: 2020, Class B Worldwide: VCCI-CISPR 32, Class B CISPR 32: 2016, Class B AS/NZS CISPR 32: 2015, Class B CNS 15936: 2020, Class B CISPER 35: 2016 EN 55035:2017/A11:2020 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 IEC/EN 61000-3-2 IEC/EN 61000-3-3 IEC/EN 63000:2018 KS C 9832
Features
Built-in processor	Yes
Processor frequency	2000 MHz
