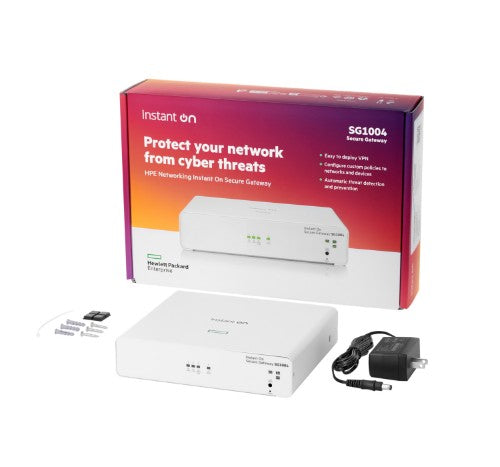

HPE Networking Instant On Secure SG1004 gateway/controller 10, 100, 1000 Mbit/s

Networking Instant On Secure Gateway 4‑port Gigabit SG1004

Description

The HPE Networking Instant On Secure Gateway is a powerful, cloud-managed security solution designed for small and growing businesses. It delivers enterprise-grade security—firewall, IDS/IPS, VPN, PoE, and WAN resiliency—without hidden fees or licenses. Managed through a single platform, it offers domain blocking, deep packet inspection, and 24x7 network monitoring to protect against cyberthreats. Designed with ease of use in mind, it enables minimum-touch deployment and automated configuration, making network setup and management accessible even for non-technical users. Ideal for securing customer data, transactions, and multi-site connectivity, this gateway provides easy, reliable control tailored to SMB needs, combining simplicity with top-tier protection.

Active Threat Monitoring with Intrusion Detection and Prevention (IDS/IPS)
- IDS and IPS monitor network traffic for suspicious activities. IDS detects and alerts administrators about potential security breaches, while IPS actively blocks or prevents threats in real-time.
- Together, IDS and IPS enhance network security by identifying and responding to potential intrusions.

Keep the Network Safe with a Stateful Firewall
- This monitors and controls network traffic based on policies, creating a barrier between trusted internal networks and untrusted external networks to prevent unauthorized access and cyber threats.
- Default settings block external traffic from accessing the LAN. policies can allow or block traffic, enable port-forwarding, and client access.

Keep the Business Online with WAN Resiliency
- This feature enables continuous connectivity during network disruptions using multiple ISP connections.
- The secure gateway detects issues (link degradation or failure) and reroutes traffic to the best available ISP uplink, reducing downtime and service interruptions.

Specifications

Design
Mounting type	Desktop/Wall mounting
Product colour	White
Performance
Built-in processor	Yes
Processor frequency	2000 MHz
Internal memory	2048 MB
Flash memory	4096 MB
Mounting type	Desktop/Wall mounting
Product colour	White
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Firewall throughput	980 Mbit/s
Ports & interfaces
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	4
Power
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	12 W
Power consumption (idle)	2.3 W
Weight & dimensions
Weight	2.27 lbs (1.03 kg)
Width	6.46" (164.1 mm)
Height	1.73" (43.9 mm)
Depth	7.48" (190 mm)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 95%
Technical details
Built-in processor	Yes
Processor frequency	2000 MHz
Memory
Internal memory	2048 MB
Flash memory	4096 MB
Features
Built-in processor	Yes
Processor frequency	2000 MHz
