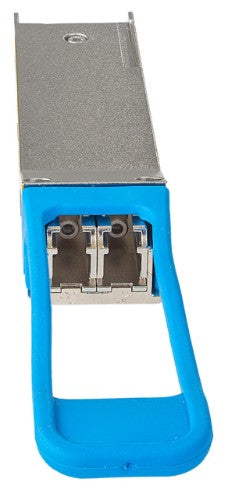

HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver

HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver, Fiber optic, 40000 Mbit/s, QSFP+, LC, 9/125 µm, LR4

Description

HPE Networking X142 40G QSFP+ LC LR4 SM Transceiver. SFP transceiver type: Fiber optic, Maximum data transfer rate: 40000 Mbit/s, Interface type: QSFP+. Compatible products: HP 5400R zl2. Certification: MSA. Width: 3.5" (88.9 mm), Depth: 6.6" (167.6 mm), Height: 0.902" (22.9 mm). Quantity per pack: 1 pc(s)

Specifications

Performance
SFP transceiver type	Fiber optic
Interface type	QSFP+
Maximum data transfer rate	40000 Mbit/s
Fiber optic connector	LC
Auto MDI/MDI-X	Yes
Wavelength	1310 nm
Fiber cable diameters supported (core/cladding)	9/125 µm
Cabling technology	40GBASE-LR4
Single-mode fiber (SMF) supported	Yes
SFP transceiver standard	LR4
Hot-Plug support	Yes
Compatible products	HP 5400R zl2
Harmonized System (HS) code	85369010
Features
Hot-Plug support	Yes
Compatible products	HP 5400R zl2
Certification	MSA
Certificates
Certification	MSA
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 85%
Network
SFP transceiver type	Fiber optic
Interface type	QSFP+
Maximum data transfer rate	40000 Mbit/s
Fiber optic connector	LC
Cabling technology	40GBASE-LR4
Weight & dimensions
Width	3.5" (88.9 mm)
Depth	6.6" (167.6 mm)
Height	0.902" (22.9 mm)
Weight	3.17 oz (90 g)
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85369010
Other features
Weight (imperial)	0.2 lbs
