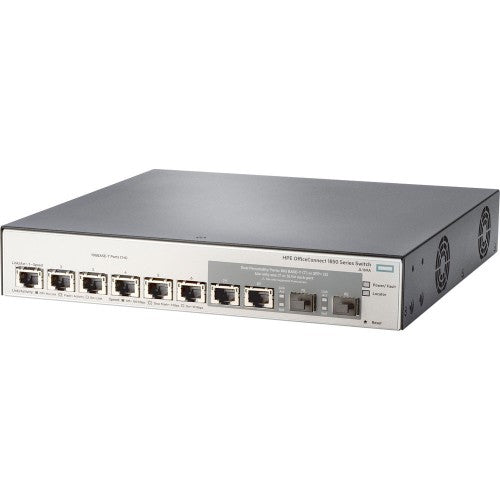

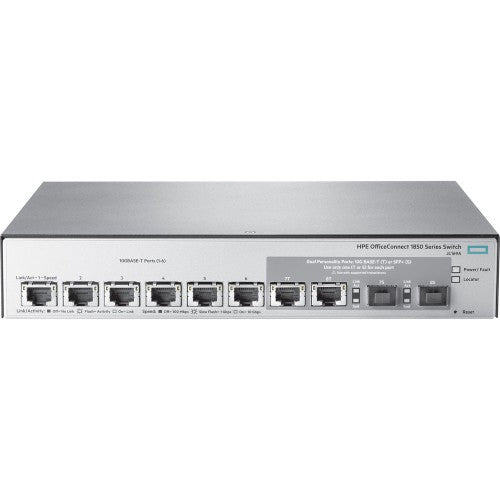

HPE OfficeConnect 1850 6XGT & 2XGT/SPF+ Managed L2 Gigabit Ethernet (10/100/1000) 1U Gray

HPE OfficeConnect 1850 6XGT & 2XGT/SPF+, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting, 1U

Description

HPE OfficeConnect 1850 6XGT & 2XGT/SPF+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6, Installed SFP+ modules quantity: 2. MAC address table: 16000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	2
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
MAC address table	16000 entries
Switching capacity	160 Gbit/s
Throughput	119 Mpps
Latency (10-100 Mbps)	6.8 µs
Latency (1 Gbps)	2.9 µs
Latency (10 Gbps)	6.8 µs
Jumbo frames support	Yes
Packet buffer memory	2 MB
Security
SSH/SSL support	Yes
IGMP snooping	Yes
DHCP features	DHCP client
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Gray
Form factor	1U
Performance
Processor frequency	600 MHz
Memory type	DDR3-SDRAM
Internal memory	128 MB
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	2 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	42.8 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	9.96" (253 mm)
Depth	10.3" (260.7 mm)
Height	1.73" (44 mm)
Weight	3.84 lbs (1.74 kg)
