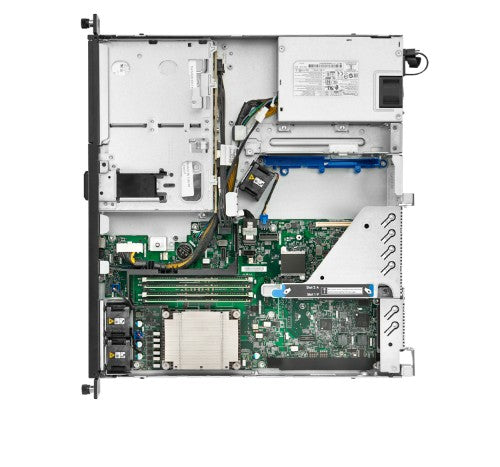

HPE ProLiant DL20 Gen10+ server 960 GB Rack (1U) Intel Xeon E E-2336 2.9 GHz 32 GB DDR4-SDRAM 500 W

HPE ProLiant DL20 Gen10+, 2.9 GHz, E-2336, 32 GB, DDR4-SDRAM, 960 GB, Rack (1U)

Description

HPE ProLiant DL20 Gen10+. Processor family: Intel Xeon E, Processor frequency: 2.9 GHz, Processor model: E-2336. Internal memory: 32 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 2 x 16 GB. Total storage capacity: 960 GB. Ethernet LAN. Power supply: 500 W, Redundant power supply (RPS) support. Chassis type: Rack (1U)

Specifications

Processor
Processor frequency	2.9 GHz
Processor family	Intel Xeon E
Processor model	E-2336
Processor cores	6
Number of processors installed	1
Processor cache	12 MB
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
Motherboard chipset	Intel C256
Memory
Internal memory	32 GB
Maximum internal memory	128 GB
Internal memory type	DDR4-SDRAM
Memory slots	4x DIMM
Memory layout (slots x size)	2 x 16 GB
Memory clock speed	3200 MHz
ECC	Yes
Storage
Total storage capacity	960 GB
RAID support	Yes
RAID levels	0, 1, 5, 10
SSD interface	SATA
SSD capacity	480 GB
Optical drive type	No
Number of SSDs installed	2
Maximum storage capacity	46.08 TB
Hot-Plug support	Yes
SSD size	2.5"
Graphics
Maximum graphics card memory	16 MB
On-board graphics card model	Matrox G200
On-board graphics card	Yes
Network
LAN controller	Broadcom BCM5720
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 ports quantity	1
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	2
Design
Chassis type	Rack (1U)
Rack mounting	Yes
Optical drive type	No
Performance
Remote administration	iLO 5 ASIC
Operating system installed	No
Compatible operating systems	Microsoft Windows Server VMware ESXi Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Software
Operating system installed	No
Compatible operating systems	Microsoft Windows Server VMware ESXi Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu
Processor special features
CPU configuration (max)	1
Power
Redundant power supply (RPS) support	Yes
Number of redundant power supplies installed	2
Power supply	500 W
Weight & dimensions
Width	17.1" (434.6 mm)
Height	1.7" (43.2 mm)
Depth	15" (382.2 mm)
Other features
CPU configuration (max)	1
