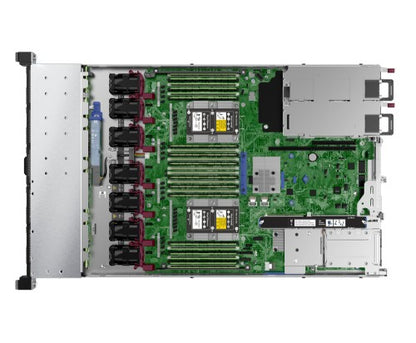

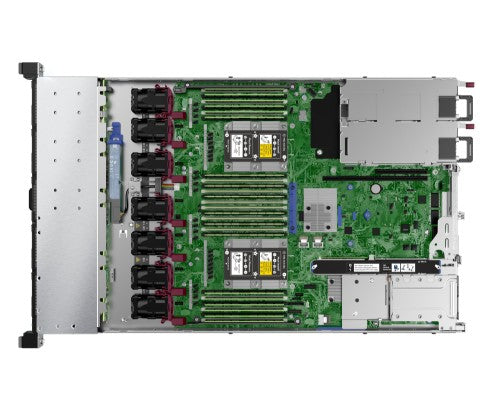

HPE ProLiant DL360 Gen10 8SFF Configure-to-order Server

HPE ProLiant DL360 Gen10 8SFF Configure-to-order Server, DDR4-SDRAM, Rack (1U)

Reasons To Buy

Industry-leading Performance with Versatile Compute

HPE ProLiant DL360 Gen10 server supports industry-standard technology leveraging the Intel Xeon Scalable processor with up to 28 cores, 12G SAS and 3.0 TB of 2933 MT/s HPE DDR4 SmartMemory.
Supporting the second generation Intel Xeon Scalable processor family with up to a 11% per-core performance gain ^[4] over first generation and with memory speeds up to 2933 MT/s.
Intel Optane™ persistent memory 100 series for HPE works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly. ^[6]
Achieve greater capacity with flexible drive configurations with up to 10 SFF and four LFF drives along with an option to support up to 10 NVMe PCIe SSDs delivering enhanced performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.
With support for up to 12 NVDIMMs per chassis and 2X capacity of first-generation HPE NVDIMMs, HPE ProLiant DL360 Gen10 server delivers up to 192 GB per system. ^[7]

Innovative Design for Flexibility and Choice

The premium 10 SFF NVMe chassis backplane provides the ability to mix and match SAS/SATA and NVMe within the same chassis along with 8 + 2 SFF and 4 LFF chassis that supports new uFF and M.2 storage options.
Embedded 4 x 1GbE (select models) or HPE FlexibleLOM and PCIe standup 1GbE, 10GbE, 25GbE, or 100GbE adapters provides flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
Unmatched expandability is packed in a dense 1U rack design with up to three PCIe 3.0 slots.

Security Innovations

HPE iLO 5 enables the world’s most secure industry standard servers with HPE silicon root of trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
New features include Server Configuration Lock that ensures secure transit and locks server hardware configuration, iLO Security Dashboard helps detect and address possible security vulnerabilities and Workload Performance Advisor provides server tuning recommendations for better server performance.
With Runtime Firmware Verification the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware. Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.
Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to server and securely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.

Industry-Leading Serviceability and Deployment

HPE ProLiant DL360 Gen10 server comes with a complete set of services offered by HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
Services from HPE Services simplifies the stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an enhanced solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
Services provided under Operational Services include - HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.
HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Description

HPE ProLiant DL360 Gen10 8SFF Configure-to-order Server. Internal memory type: DDR4-SDRAM. Ethernet LAN. Chassis type: Rack (1U)

Specifications

Processor
Processor cache type	L3
Memory
Internal memory type	DDR4-SDRAM
Storage
Supported RAID controllers	HPE Smart Array S100i and/or HPE Essential or Performance RAID controllers, depending on model
Supported storage drive interfaces	PCI Express, Serial Attached SCSI (SAS), Serial ATA
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Ethernet LAN (RJ-45) ports	4
Expansion slots	3, for detailed descriptions refer to the QuickSpecs
Design
Chassis type	Rack (1U)
Performance
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Security features	Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Management platform	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
Harmonized System (HS) code	84714100
Logistics data
Harmonized System (HS) code	84714100
Weight & dimensions
Width	16.9" (429 mm)
Weight	28.7 lbs (13 kg)
Height	17.1" (434.6 mm)
Depth	17.1" (434.6 mm)
Technical details
Number of storage drives supported	8
Other features
Supported memory types	DDR4-SDRAM
Security features	Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Number of processors supported	2
Number of DIMM slots	24
Hot-swap HDD bays	Yes
Weight (imperial)	28.74 lbs
