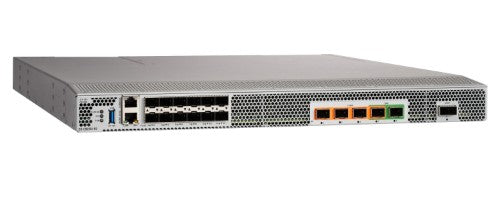

HPE SN6640C 32Gb 6-port FC/FCIP Multiservice Switch

HPE SN6640C 32Gb 6-port FC/FCIP Multiservice Switch, 1U

Reasons To Buy

High Density SAN Consolidation with Integrated Multiprotocol Support

The HPE Storage Multiservice Switch C-series SN6640C is available in a base configuration of four ports of 32 Gbps Fibre Channel for high-performance SAN connectivity and two ports of 1/10 Gigabit Ethernet for FCIP storage services, running at a maximum speed of 1 Gbps.
It can be upgraded to enable an additional eight ports of 32 Gbps Fibre Channel by adding the on-demand upgrade license. The upgrade license also enables 10 Gigabit speed on the initial two Ethernet ports, two additional 1/10 Gigabit ports, two 25 Gigabit ports, and one 40 Gigabit port.
It provides flexible connectivity options toward datacenter switches, routers or DWDM systems. Both the 25 G and 40 G options can be very valuable for data with a lower level of compressibility, while the 1 G and 10 G options can meet the needs of small-medium organizations.

Remote SAN Extension with High-Performance FCIP

The HPE Storage Multiservice Switch C-series SN6640C provides FCIP support for business continuity and disaster recovery as a standalone device and a FCIP SAN extension switch for HPE Storage Director Switch C-series SN8700C.
This switch breaks the distance barriers of current Fibre Channel solutions with support for FCIP, enabling interconnection of SAN islands over extended distances.
You will get dramatically enhanced hardware-based FCIP compression performance for both high-bandwidth and low-bandwidth links, which provides immediate cost saving for expensive WAN infrastructure. Used with other hardware-based encryption, it provides high-performance SAN extension capabilities.
The switch supports hardware-based IPsec encryption for improved transmission security of sensitive data over extended distances. Hardware enablement of IPsec helps to provide high throughput.

Comprehensive Robust Network Security and Customization

The HPE Storage Multiservice Switch C-series SN6640C supports hardware-based data compression and tape acceleration to enhance remote backup operations and allows more data to be transferred over WAN connections more cost effectively. Shift your budget from operations to innovation.
The switch supports a variety of security features to facilitate protection of your customer data. A variety of security techniques are supported such as encryption, switch authentication, data integrity, hardware-enforced zoning, and more across multiprotocol connectivity.
The switch offers a highly available solution that protects data from unauthorized access and keeps data private while meeting regulatory compliance and avoiding financial consequences of a security breach.

Description

HPE SN6640C 32Gb 6-port FC/FCIP Multiservice Switch. Form factor: 1U

Specifications

Security
Security algorithms	SNMPv3, IPSec
Protocols
Supported protocols	Fibre Channel, FCIP
Design
Form factor	1U
Performance
Media types supported	Supports 32Gb, 16Gb, and 8Gb FC; 1GbE and 10GbE Ethernet transceivers
Power
Redundant power supply (RPS) support	Yes
Other features
Upgrade type	Activate additional 8 FC ports and 4 FCIP ports using upgrade license
Technical features	Non-disruptive software upgrades, hot-swappable and 1+1 redundant power supplies, hot-swappable fan module, hot-swappable SFP+ optics, stateful process restart
Port speed rating	32Gb FC, 1GbE Ethernet
Optional software	Port upgrade license, Enterprise Package license, Cisco Data Center Network Manager (DCNM) license, Advantage license (1, 3, 5 years)
Supported protocols	Fibre Channel, FCIP
Weight & dimensions
Width	17.3" (439.4 mm)
Depth	20.1" (511 mm)
Height	1.68" (42.7 mm)
System requirements
Media types supported	Supports 32Gb, 16Gb, and 8Gb FC; 1GbE and 10GbE Ethernet transceivers
