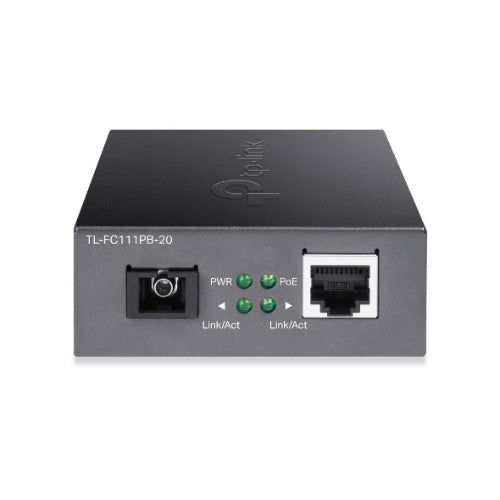

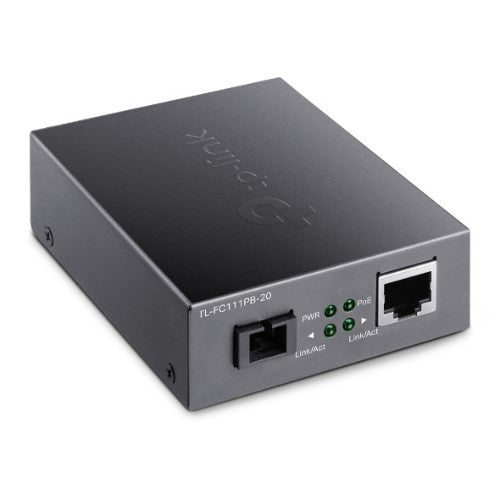

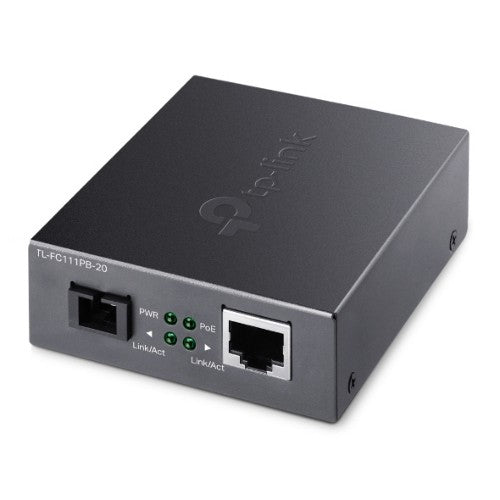

TP-Link FC111PB-20 network media converter 100 Mbit/s Single-mode Black

10/100Mbps WDM Media Converter with 1-Port PoE

Key Features

• Converts the data between fiber (optical signal) and copper (electric signal)
• Extends fiber distance up to 20 km
• The 802.3af PoE output makes remote camera deployment easier and more convenient
• WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fiber strand instead of two
• Wide operating temperature (0–50 ℃) with reliability
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

Description

TL-FC111PB-20 is a 10/100 Mbps media converter with 802.3af PoE output, providing 1× 10/100 Mbps PoE RJ45 port and 1× 100 Mbps SC fiber port, which can convert between electrical and optical signals. With up to 20 km fiber transmission distance and 802.3af PoE output, the media converter is designed to address the needs of flexible long-range surveillance deployment with optical fibers. It provides an economical path towards extending the distance of an existing network.

TL-FC111PB-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111PB-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111PB-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111PB-20.

Specifications

Network
Maximum data transfer rate	100 Mbit/s
Ports & interfaces
Connectivity technology	Wired
Fiber ports quantity	1
Power over Ethernet (PoE) ports quantity	1
Performance
Maximum transfer distance	787401.6" (20000 m)
Fiber mode structure	Single-mode
Fiber cable diameters supported (core/cladding)	9/125 µm
Design
Internal	No
LED indicators	Yes
Product colour	Black
Weight & dimensions
Width	3.72" (94.5 mm)
Depth	2.87" (73 mm)
Height	1.06" (27 mm)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
AC adapter included	Yes
User guide	Yes
