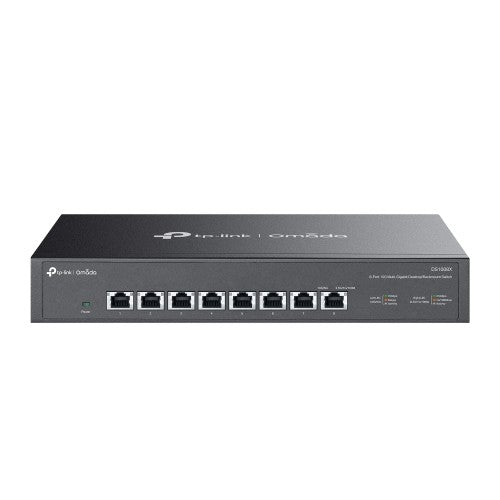

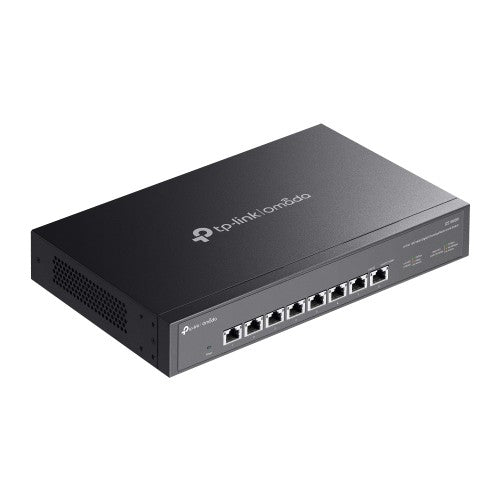

TP-Link Omada DS1008X network switch Unmanaged 10G Ethernet (100/1000/10000) 1U Black

8-Port 10G Unmanaged Desktop/Rackmount Switch, 160 Gbps, 1x Fan, 31.2 W

Key Features

• Eight 10 Gbps Ports. 8× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity
• Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more
• Ideal for Various Scenarios. Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment
• Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance
• Plug and Play. No configuration or central management required

Description

Omada 8Port 10G MultiGigabit SwitchPORT: 8 10G RJ45 PortsSPEC: 1U 13inch Rackmountable Steel CaseFEATURE: Plug and Play

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Power connector	AC-in jack
Copper ethernet cabling technology	10GBASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10GBASE-T, 100BASE-TX, 1000BASE-T
Flow control support	Yes
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	Yes
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
MAC address table	16000 entries
Switching capacity	160 Gbit/s
Jumbo frames	12
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	12 MB
Forwarding rate	119.04 Mpps
Security
IGMP snooping	Yes
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
LED indicators	Activity, Link, Power
Housing material	Metal
Number of fans	1 fan(s)
Performance
Plug and Play	Yes
Packet buffer memory	12 MB
Auto-negotiation	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	31.2 W
Input current	0.8 A
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	11.6" (294 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	Power
Rubber feet	Yes
Packaging data
Rubber feet	Yes
Rack mount kit	Yes
User guide	Yes
Cables included	Power
Technical details
Compliance certificates	CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
Certificates
Compliance certificates	CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
Other features
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
