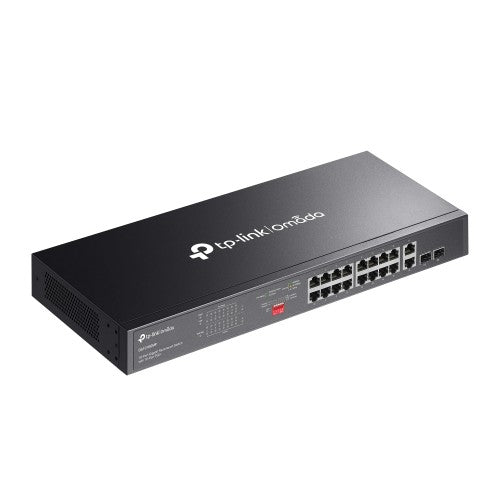

TP-Link Omada DS1018GMP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

18-Port Gigabit Unmanaged Rackmount Switch with 16-Port PoE+, 2× Combo Gigabit SFP, 36 Gbps, 2x fan

Key Features

• 16× Gigabit PoE+ RJ45 ports and 2× Combo Gigabit SFP slots
• High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports
• Working with IEEE 802.3af/at compliant PDs
• Up to 250m data and power transmitting range under Extend Mode
• Priority mode for ports 1–4 to guarantees the quality of sensitive applications like video monitor
• Isolation Mode allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and Play. No configuration or central management required

Description

Omada 18Port Gigabit Rackmount Switch with 16Port PoE+ PORT: 16 Gigabit PoE+ Ports, 2 Gigabit NonPoE Ports, 2 Combo Gigabit SFP Slots SPEC: 802.3at/af, 250 W PoE Power, 1U 19inch Rackmountable Steel Case FEATURE: Plug and Play

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Power connector	AC-in jack
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Jumbo frames	10
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Forwarding rate	26.78 Mpps
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
LED indicators	Activity, Link, PoE, Power
Housing material	Metal
Number of fans	2 fan(s)
Performance
Plug and Play	Yes
Packet buffer memory	4.1 MB
Auto-negotiation	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	293.34 W
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	250 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1000.29 BTU/h
Weight & dimensions
Width	17.3" (440 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	Power
Rubber feet	Yes
Packaging data
Rubber feet	Yes
Rack mount kit	Yes
User guide	Yes
Cables included	Power
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
