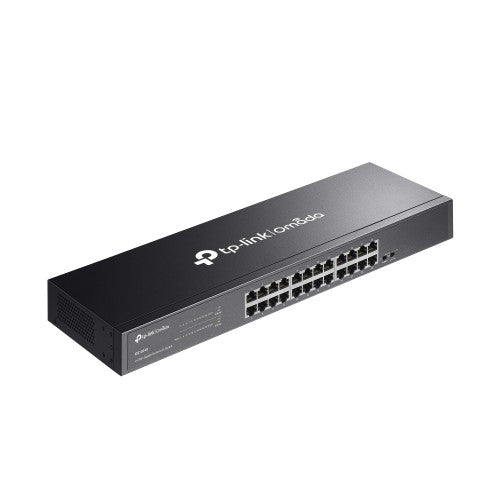

TP-Link Omada DS1024G network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Black

24-Port RJ45 Gigabit Unmanaged Rackmount Switch, 48Gbps, Fanless, 13.62W (220V/50Hz)

Key Features

• 24 10/100/1000Mbps RJ45 ports
• Supports MAC address self-learning and auto MDI/MDIX
• Standard 19-inch rack-mountable steel case
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
• Plug and Play. No configuration or central management required

Description

What This Product Does
The DS1024G Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the DS1024G can save power consumption, making it an eco-friendly solution for your business network.

*Omada Unmanaged Switches do not support Omada SDN central management.

TP-Link Green Technology
This new generation DS1024G Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU's RoHS, prohibiting the use of certain hazardous materials. Besides, most of the packaging material can be recycled.

High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, DS1024G forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The DS1024G work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Loop Prevention
Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.

Specifications

Management features
Switch type	Unmanaged
Reset button	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	AC-in jack
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Jumbo frames	10
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	35.7 Mpps
Security
Loop protection	Yes
Design
Rack mounting	Yes
Product colour	Black
Reset button	Yes
Form factor	1U
LED indicators	Yes
Housing material	Steel
Performance
Fanless	Yes
Auto-negotiation	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	13.62 W
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	46.44 BTU/h
Weight & dimensions
Width	17.3" (440 mm)
Depth	5.51" (140 mm)
Height	1.73" (44 mm)
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	Power
Rubber feet	Yes
Packaging data
Rubber feet	Yes
Rack mount kit	Yes
User guide	Yes
Cables included	Power
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
