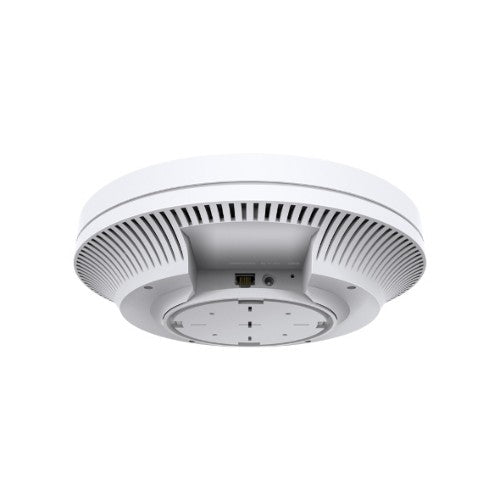

TP-Link Omada EAP670 wireless access point 5400 Mbit/s White Power over Ethernet (PoE)

2.4GHz (574 Mbps), 5GHz (4804 Mbps), IEEE 802.11ax/ac/n/g/b/a, 1× 2.5 Gigabit Ethernet (RJ-45), 802.3at PoE, 243 x 243 x 64 mm

Key Features

• Blazing-Fast WiFi 6 Speeds - Delivers astonishing wireless speeds of up to 54 Gbps powered by the latest WiFi 6 technology
• Higher Network Efficiency - OFDMA and DL/UL MU-MIMO* deliver data to multiple devices simultaneously with less lag
• Long-Range Coverage - Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
• Optimized Network Experience - Ensures uninterrupted WiFi connections with seamless roaming and Omada Mesh technology*
• Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management

Description

High-End Business WiFi 6 to Power Up Your Business
AX5400 Ceiling Mount Wi-Fi 6 Access Point

AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†

High-Efficiency WiFi 6
More connected devices can enjoy faster speeds

Centralized Cloud Management
Manage the whole network locally or from the cloud

2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port

160 MHz Channel
Double the data at peak transmission times on a single stream with HE160

Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference

Omada Mesh Technology
More flexible and convenient wireless deployment§

Seamless Roaming
Uninterrupted streaming when moving between APs§

PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

Designed for Business Environments
Requiring High-Performance WiFi

High-End Business Wi-Fi 6 Bring Real Power to Your Business
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Specifications

Performance
Maximum data transfer rate	5400 Mbit/s
Ethernet LAN data rates	2500 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 5 GHz
Wireless isolation	Yes
Automatic channel selection	Yes
Number of users	250 user(s)
Web-based management	Yes
VLAN support	No
Reset button	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Firmware upgradeable	Yes
Certification	CE, FCC, RoHS
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Features
6 GHz	No
Maximum data transfer rate	5400 Mbit/s
Ethernet LAN data rates	2500 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 5 GHz
Wireless isolation	Yes
Automatic channel selection	Yes
Number of users	250 user(s)
VLAN support	No
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Transmitting power (FCC)	<25 dBm (2.4 GHz); <28 dBm (5 GHz)
Transmitting power (CE)	<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, band1 & band2, EIRP); <30 dBm(5 GHz, band3, EIRP)
Automatic channel scanning	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	4804 Mbit/s
BeamForming	Yes
Security
Number of SSID supported	16
Access Control List (ACL)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Management features
Web-based management	Yes
Firmware upgradeable	Yes
Power
Input current	1.5 A
Power over Ethernet (PoE)	Yes
Design
Reset button	Yes
Placement	Ceiling, Wall
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	White
Certification	CE, FCC, RoHS
Antenna
Antenna type	Internal
Antennas quantity	6
Antenna gain level (max)	5 dBi
Antenna direction type	Omni-directional
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, RoHS
Software
Automatic channel scanning	Yes
Access Control List (ACL)	Yes
Weight & dimensions
Width	9.57" (243 mm)
Depth	9.57" (243 mm)
Height	2.52" (64 mm)
Package width	11.9" (302 mm)
Package depth	12" (304 mm)
Package height	3.23" (82 mm)
Package weight	2.91 lbs (1.32 kg)
Packaging data
Package width	11.9" (302 mm)
Package depth	12" (304 mm)
Package height	3.23" (82 mm)
Package weight	2.91 lbs (1.32 kg)
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
