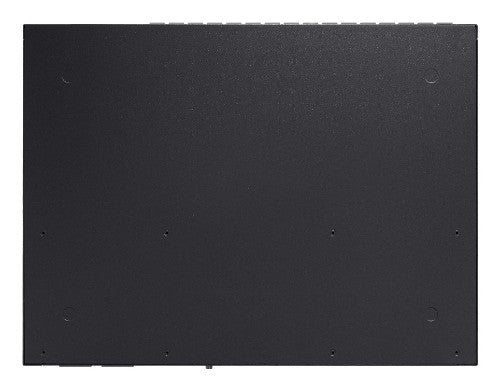

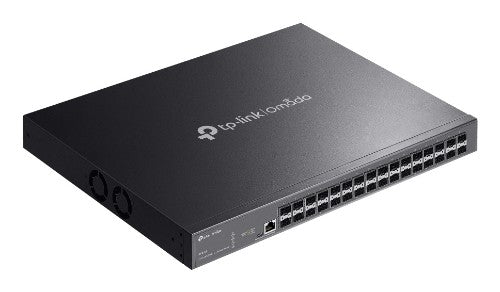

TP-Link Omada SX3032F network switch Managed L2+ Black

L2+, 32× 10-Gbit/s-SFP+, 640 Gbit/s, 32 K MAC, 9 KB Jumbo, 440 x 330 x 44 mm

Key Features

• 32× 10 Gbps SFP+ slots
• 640 Gbps switching capacity
• Two internal fixed power supply modules back each other up
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design

Description

Omada 32-Port 10GE SFP+ L2+ Managed Switch

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Specifications

Management features
Switch layer	L2+
Switch type	Managed
ARP inspection	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	1
Installed SFP+ modules quantity	32
Console port	RJ-45/Micro-USB
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x
Number of VLANs	30
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Virtual LAN features	Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN
IPv6 routes	48
IPv4 routes	48
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Data transmission
MAC address table	32000 entries
Switching capacity	640 Gbit/s
Jumbo frames	9
Number of queues	8
Number of static routes	128
Number of IP interfaces	128
Jumbo frames support	Yes
Packet buffer memory	24 MB
Static route	Yes
Forwarding rate	240 Mpps
Number of VLANs	30
Number of multicast groups filtered	4000
Multicast Listener Discovery (MLD) snooping	Yes
Security
Loop protection	Yes
IP-MAC-Port binding	Yes
Authentication	MAC-based authentication, Port-based authentication
Static port security	Yes
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Queue scheduling algorithms	Priority queuing (PQ), SP, Weighted Round Robin (WRR)
Password protection	Yes
Authentication type	AAA, TACACS+
DHCP features	DHCP relay, DHCP server, DHCPv6 snooping
Multicast features
Number of multicast groups filtered	4000
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes
Protocols
GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP
IP Source Guard (IPSG)	Yes
Design
Rack mounting	Yes
Product colour	Black
Number of fans	2 fan(s)
Redundant fans support	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	49.4 W
Power source	AC
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Virtual LAN features
Number of VLANs	30
VLAN support	Yes
Virtual LAN features	Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN
Weight & dimensions
Width	17.3" (440 mm)
Depth	13" (330 mm)
Height	1.73" (44 mm)
Packaging content
Quick start guide	Yes
Cables included	Power
IPv4 & IPv6 features
IPv4 & IPv6 features	Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP
Performance
Packet buffer memory	24 MB
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
Packaging data
Quick start guide	Yes
Cables included	Power
