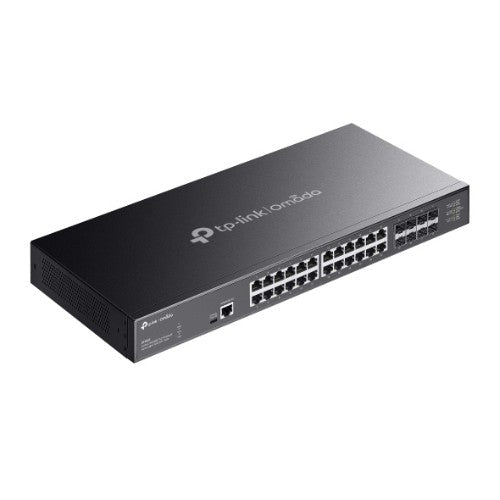

TP-Link Omada SX3832 network switch Managed L2/L2+ 10G Ethernet (100/1000/10000) 1U Black

24× 1/2.5/5/10 Gbps RJ45, 8× 1/10 Gbps SFP+, 640 Gbps, 32 K MAC, 9 KB Jumbo, 440 x 220 x 44 mm

Key Features

• 24× 1/2.5/5/10 Gbps RJ45 ports
• 8× 1/10 Gbps SFP+ slots
• 640 Gbps switching capacity
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design

Description

Omada 24-Port 10GBASE-T
L2+ Managed Switch with 8
10GE SFP+ Slots

- 24× 1/2.5/5/10 Gbps RJ45 Ports
- 8× 10 Gbps SFP+ Slots
- Centralized Management
- Omada App
- Zero-Touch Provisioning
- Ethernet Ring Protection Switching
- Static Routing
- Traffic Separation

Specifications

Management features
Switch layer	L2/L2+
Switch type	Managed
ARP inspection	Yes
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	8
Console port	RJ-45/USB Type-C
USB Type-C ports quantity	1
Network
Networking standards	IEEE 802.3az
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
IP routing	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100 Mbit/s
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
IGMP snooping	Yes
Data transmission
MAC address table	32000 entries
Switching capacity	640 Gbit/s
Jumbo frames	9000
Jumbo frames support	Yes
Packet buffer memory	24 MB
Static route	Yes
Forwarding rate	240 Mpps
Security
Loop protection	Yes
Authentication	Auto VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	AAA, RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Form factor	1U
LED indicators	Yes
Number of fans	2 fan(s)
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	106.5 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	363.23 BTU/h
Virtual LAN features
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Weight & dimensions
Width	17.3" (440 mm)
Depth	8.66" (220 mm)
Height	1.73" (44 mm)
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC, LAN (RJ-45)
Performance
Stackable	Yes
Packet buffer memory	24 MB
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC, LAN (RJ-45)
Other features
Ethernet LAN data rates	10,100 Mbit/s
