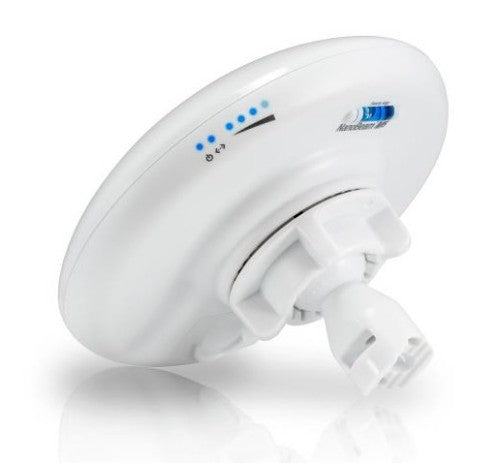

Ubiquiti NanoBeam M5 network antenna 16 dBi

NanoBeam M5, 16dBi, 5GHz

Description

Incorporating innovative industrial design with advanced technology, the NanoBeam M is the latest generation of Ubiquiti Networks airMAX CPE for customer locations.

Plug and Play Installation
The NanoBeam mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Incredible Antenna “Beam” Performance
The form factor of the NanoBeam features the highest gain for its size. The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.

Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Specifications

Performance
Antenna gain level (max)	16 dBi
Frequency band	5 GHz
Features
Polarization	Dual polarization
Mounting	Wall
Product colour	White
Antenna gain level (max)	16 dBi
Frequency band	5 GHz
Certification	FCC, IC, CE
Power
Power requirements	24V
Power consumption	500 mA
Certificates
Certification	FCC, IC, CE
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	11.3 oz (320 g)
Width	5.51" (140 mm)
Depth	5.51" (140 mm)
Height	2.13" (54 mm)
Technical details
Harmonized System (HS) code	85177100
Compliance certificates	RoHS
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100
