Ubiquiti U7 Long-Range 7300 Mbit/s White Power over Ethernet (PoE)

WiFi 7, 2.4/5 GHz, 5 Spatial Streams, 160 m² (1,750 ft²), 2.5 GbE RJ45, PoE, 300+ clients, 14W

Description

Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.

Specifications

Performance
Maximum data transfer rate	7300 Mbit/s
Ethernet LAN data rates	1000,2500 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 5 GHz
Number of users	300 user(s)
VLAN support	Yes
Reset button	Yes
Rate limiting	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Features
6 GHz	No
Maximum data transfer rate	7300 Mbit/s
Ethernet LAN data rates	1000,2500 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 5 GHz
Number of users	300 user(s)
VLAN support	Yes
Rate limiting	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Fast roaming	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	4300 Mbit/s
Fit AP mode features	Hotspot 2.0
Spatial streams	5
Coverage area	160 m²
Wireless meshing	Yes
Maximum Tx power (2.4 GHz)	26 dBmW
Maximum Tx power (5 GHz)	27 dBmW
Security
Security algorithms	PPSK, TLS
Remote Authentication Dial-In User Service (RADIUS)	Yes
Management features
Access point management	Wi-Fi schedule
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	14 W
Power over Ethernet (PoE)	Yes
DC voltage range	42.5 - 57 V
Design
Reset button	Yes
Placement	Ceiling, Wall
LED indicators	Yes
Housing material	Aluminum, Polycarbonate (PC)
Product colour	White
Antenna
Antenna type	Internal
Antenna gain level (max)	6 dBi
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Software
Fast roaming	Yes
Weight & dimensions
Width	6.92" (175.7 mm)
Depth	6.92" (175.7 mm)
Height	1.69" (43 mm)
Weight	15.8 oz (448 g)
Packaging data

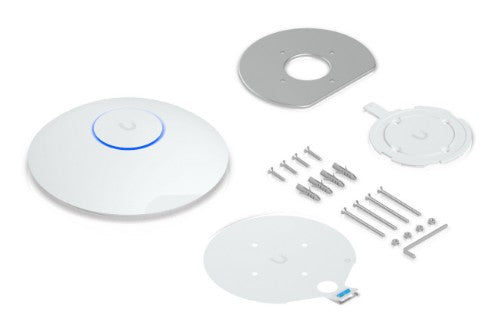

Mounting kit	Yes
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 50 °C
Logistics data
Quantity per pack	1 pc(s)
