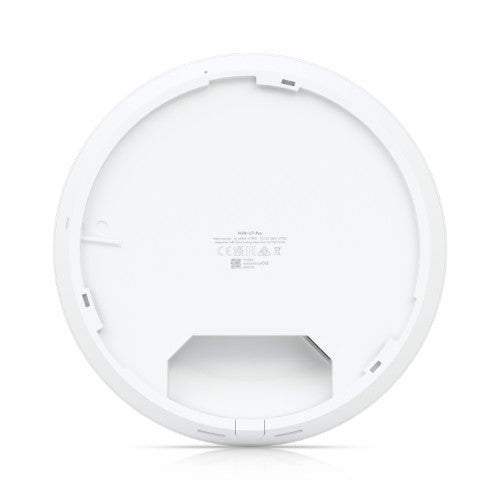

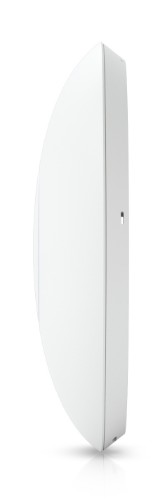

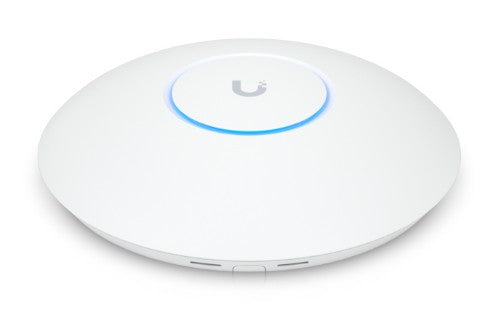

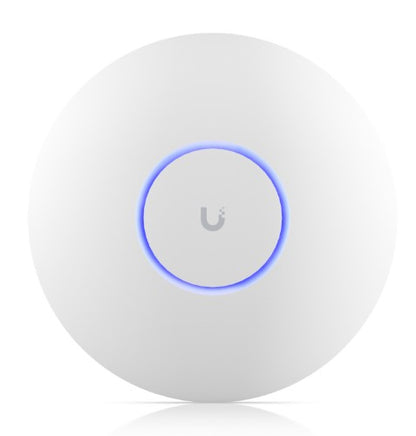

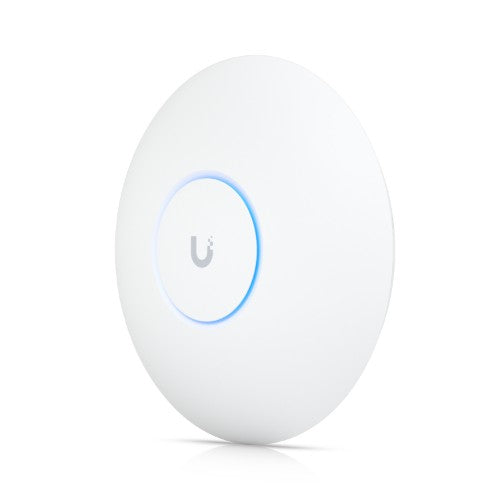

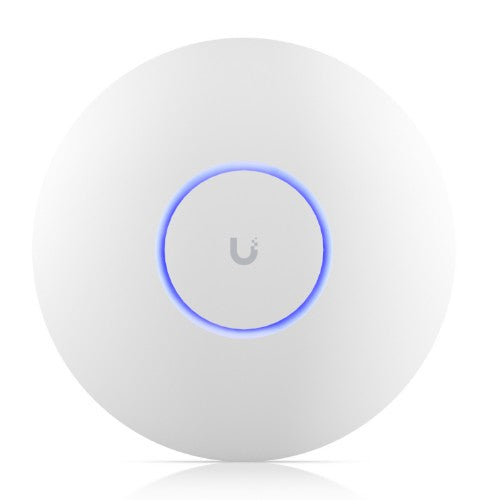

Ubiquiti U7 Pro 5700 Mbit/s White

WiFi 7 (802.11a/b/g/n/ac/ax/be), 6 GHz, 140 m2 (1,500 ft2), 1/2.5 GbE RJ45, PoE+, 300+ clients, D 206 x 46 mm, 680 g, polycarbonate, metal

Key Features

• WiFi 7 with 6 GHz support
• 6 spatial streams
• 140 m² (1,500 ft²) coverage
• 300+ connected devices
• Powered using PoE+
• 2.5 GbE uplink

Description

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

Specifications

Performance
Maximum data transfer rate	5700 Mbit/s
Ethernet LAN data rates	1000,2500 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 6 GHz
VLAN support	Yes
Reset button	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
MIMO type	Multi User MIMO
MIMO	Yes
Features
6 GHz	Yes
Maximum data transfer rate	5700 Mbit/s
Ethernet LAN data rates	1000,2500 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 6 GHz
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	4300 Mbit/s
Maximum data transfer rate (6 GHz)	5700 Mbit/s
Spatial streams	6
Security
Security algorithms	PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Ports & interfaces

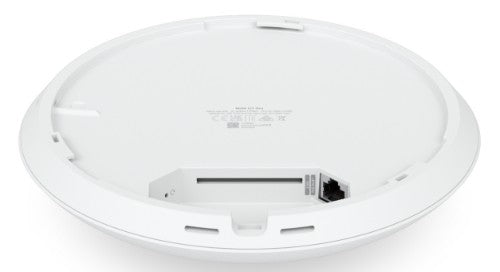

Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	21 W
Power over Ethernet (PoE)	No
DC voltage range	44 - 57 V
Design
Reset button	Yes
Placement	Ceiling, Wall
LED indicators	Yes
Housing material	Metal, Polycarbonate (PC)
Product colour	White
Antenna
Antenna type	Internal
Antenna gain level (max)	5.8 dBi
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Weight & dimensions
Width	8.11" (206 mm)
Depth	8.11" (206 mm)
Height	1.81" (46 mm)
Weight	24 oz (680 g)
Packaging data
Mounting kit	Yes
Packaging content
Mounting kit	Yes

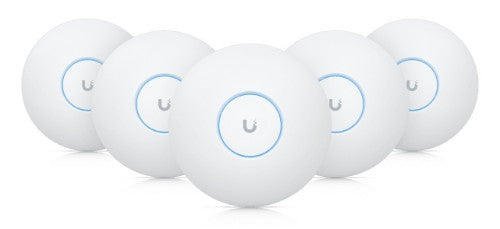

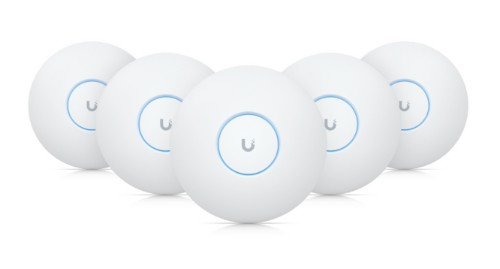

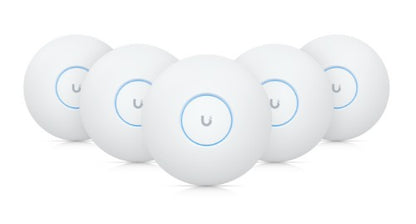

Quantity per pack	5 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 40 °C
Logistics data
Quantity per pack	5 pc(s)
