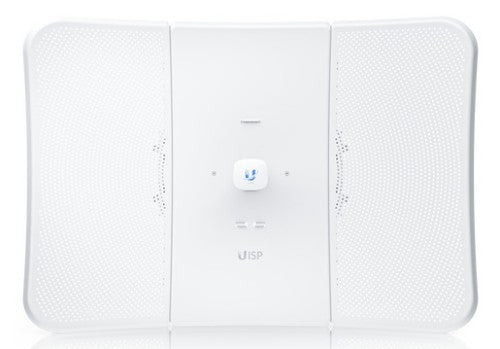

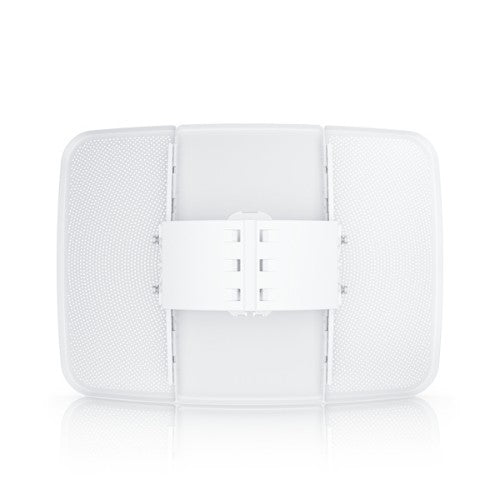

Ubiquiti UISP LTU XR White Power over Ethernet (PoE)

5 GHz LTU client that establishes extremely long-distance wireless links with an LTU Rocket serving as its base station

Key Features

• Proprietary Ubiquiti LTU core processor
• Long-range, 29 dBi antenna with InnerFeed® technology
• High data and performance rate (1024 QAM)
• Link range up to 35 km
• Channel width flexibility (10/20/30/40/50 MHz bandwidth)
• Central configuration management from the AP side
• Frequency splitting
• Router mode support
• Integrated GPS
• Link planning support via ISP Design Center

Description

The LTU XR is a high-performance, cost-effective PtMP CPE for wireless ISPs that can reach up to a 550 Mbps throughput rate. The LTU XR also facilitates independent transmission and receives channel frequency configurations anywhere within its radio band to avoid local interference and ensure superior client performance. Additionally, the LTU XR is equipped with a Bluetooth management radio so it's easy to set up and configure with the UISP® Mobile app.

Specifications

Performance
5 GHz	Yes
Web-based management	Yes
Reset button	Yes
Modulation	1024-QAM
Certification	FCC, IC, CE
Operating system installed	AirOS
Built-in processor	Yes
Features
5 GHz	Yes
Modulation	1024-QAM
Cabling technology	10/100/1000Base-T(X)
Bluetooth	Yes
Throughput data rate	550 Mbit/s
Operating system installed	AirOS
Built-in processor	Yes
Security
Security algorithms	WPA2-PSK
Management features
Web-based management	Yes
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Cabling technology	10/100/1000Base-T(X)
Power
Power consumption (max)	8.5 W
Power over Ethernet (PoE)	Yes
Design
Reset button	Yes
Placement	Pole
LED indicators	LAN, Power
International Protection (IP) code	IPX6
Housing material	Aluminum, Polycarbonate (PC)
Product colour	White
Certification	FCC, IC, CE
Antenna
Antenna gain level (max)	29 dBi
Certificates
Certification	FCC, IC, CE
Weight & dimensions
Width	29.4" (747 mm)
Depth	13.7" (347 mm)
Height	20.7" (525 mm)
Weight	7.05 lbs (3.2 kg)
Packaging data
Mounting kit	Yes
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 55 °C
Logistics data
Quantity per pack	1 pc(s)
