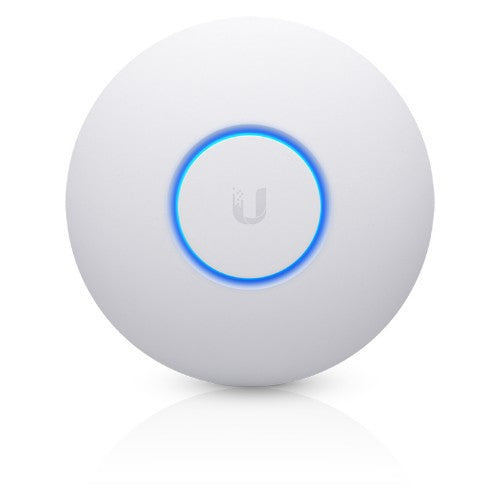

Ubiquiti UniFi nanoHD 1733 Mbit/s White Power over Ethernet (PoE)

UniFi nanoHD, 2x2 MIMO on 2.4GHz (300Mbps max PHY rate), 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 802.3af

Key Features

• 2x2 MIMO on 2.4GHz (300Mbps max PHY rate), 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate)
• 802.3af
• Same mount as UAP-AC-Lite

Description

Scalable Enterprise Wi-Fi Management
UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi nanoHD AP has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

Save Money and Save Time
UniFi comes bundled with a non-dedicated software controller that can be deployed
on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the
option of deploying the compact UniFi Cloud Key with built-in software.

Powerful Hardware
The UniFi nanoHD AP features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology.

Intuitive UniFi Controller Software
Configure and manage your APs with the easy-to-learn user interface.

Expandable
Unlimited scalability: build wireless networks as big or small as needed. Start with one (or
upgrade to a five‑pack) and expand to thousands while maintaining a single unified management system.

Specifications

Performance
Maximum data transfer rate	1733 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Number of users	200 user(s)
VLAN support	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q
Certification	CE, FCC, IC
MIMO type	Multi User MIMO
MIMO	Yes
Features
Maximum data transfer rate	1733 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Number of users	200 user(s)
VLAN support	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q
MIMO type	Multi User MIMO
MIMO	Yes
Throughput data rate	1733 Mbit/s
Security
Security algorithms	AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
Power consumption (typical)	10.5 W
Power over Ethernet (PoE)	Yes
AC input voltage	44 - 57 V
Design
Internal	Yes
Reset button	Yes
Placement	Ceiling, Wall
Product colour	White
Certification	CE, FCC, IC
Antenna
Antenna gain level (max)	3 dBi
Antenna features	Integrated antenna
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, IC
Weight & dimensions
Width	6.3" (160 mm)
Depth	6.3" (160 mm)
Height	1.29" (32.6 mm)
Weight	10.6 oz (300 g)
Packaging data
PoE adapter included	Yes
Packaging content
PoE adapter included	Yes
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-10 - 70 °C
Logistics data
Harmonized System (HS) code	85176990
